How do electromechanical switches impact flashlight performance? Selecting the right flashlight switch impacts functionality by enhancing usability, durability and the user experience. Hand-held lighting products require seamless functionality in rugged environments and diverse applications, so choosing the right switch type is paramount to making it a reliable tool in any situation.
Most commonly, you’ll find switches on flashlights employed as either tail switches or side switches. Tail switches are located on the end of the flashlight and offer a straightforward on/off control mechanism. You’ll want to prioritize ease of use, strong tactile feedback and durability in this position.
Side switches are positioned on the body of the flashlight, near the bezel, providing quick and convenient thumb operation. This ergonomic design calls for a smaller footprint and activation with minimal movement. With the removal of the switch from the tail, these flashlights can be magnetized for additional functionality.
Dual tail/side switch flashlights combine the benefits of both designs, offering the tail switch for tactical operation/stronger actuation feedback and the side switch for easy access to different modes and settings.
E-Switch’s electromechanical switches can be used in everyday carry flashlights, tactile flashlights, industrial flashlights, general-purpose flashlights and headlamps.
For more information on how tactile switch sounds are generated and controlled, view this article.
Tactile Switches for Flashlight and Portable Lighting

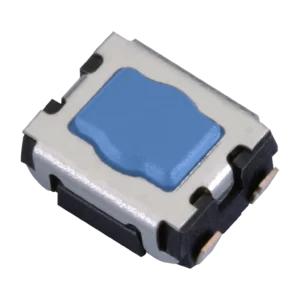

TL1030 Series: PRODUCT PAGE | DATA SHEET
- Miniature 3.50mm x 2.90mm outline with 1.70mm actuator height
- Surface mount design (SMT) with J-lead termination
- 160gf, 200gf, 350gf or 500gf operating force options
- Long life cycles ranging from 100K to 200K
- Robust operating/storage temperature of -40°C to +85°C
TL1220 Series: PRODUCT PAGE | DATA SHEET
- 7.60mm x 6.00mm outline with a variety of button options
- Through hole design (THT) with PC Pin termination
- LED illuminated; many single color and bi-color options
- Ring, power symbol or custom graphic options
- 180gf operating force with sharp tactile response and 500K life cycles
TL3145 Series: PRODUCT PAGE | DATA SHEET
- 6.45mm x 6.45mm outline with 3.5mm or 5.2mm actuator height
- Surface mount design (SMT) with J-lead termination
- 180gf, 260gf or 350gf operating force
- Long life cycles ranging from 500K to 3M
- Sealed to an IP67 rating with -40°C to +85°C operating/storage temperature

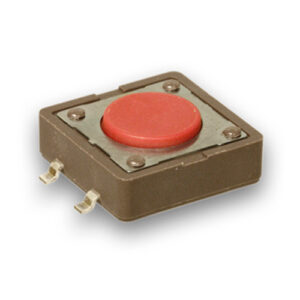

TL3300 Series: PRODUCT PAGE | DATA SHEET
- 12.00mm x 12.00mm outline with four actuator height options
- Surface mount design (SMT) with gull-wing termination
- 130gf, 160gf, 260gf, 320gf or 520gf operating force
- Long life cycles ranging from 100K to 10M
- Robust -25°C to +70°C operating temperature

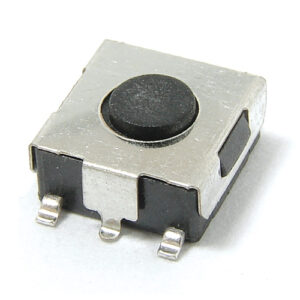

TL3303 Series: PRODUCT PAGE | DATA SHEET
- 6.00mm x 6.00mm outline with 3.1mm or 4.3mm actuator height
- Surface mount design (SMT) with gull-wing termination
- 65gf, 100gf, 160gf or 260gf operating force with strong tactile/audible feedback
- Long life cycles ranging from 100K to 5M
- Robust -20°C to +70°C operating temperature

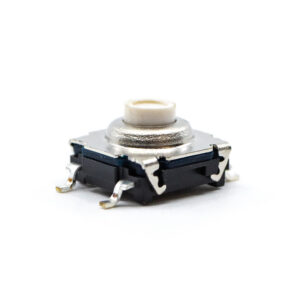

TL6120 Series: PRODUCT PAGE | DATA SHEET
- 7.40mm x 7.40mm outline with four actuator height options
- Surface mount design with gull-wing termination
- 130gf, 160gf, 300gf or 500gf operating force options
- Long life cycles ranging from 200K to 1M
- Process sealed with -40°C to +85°C operating/storage temperature

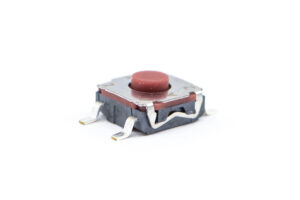

TL6150 Series: PRODUCT PAGE | DATA SHEET
- 6.20mm x 6.20mm outline with 3.50mm or 5.20mm actuator height
- Surface mount design (SMT) with J-lead or gull-wing termination
- 160gf, 200gf or 350gf operating force options
- Long life cycles ranging from 300K to 5M
- IP67 seal rating and -40°C to +85°C operating temperature
Anti-Vandal Pushbutton Switches for Flashlight and Portable Lighting

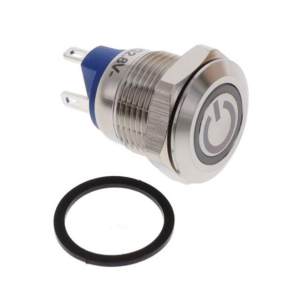

PV0 Series: PRODUCT PAGE | DATA SHEET
- 12mm diameter panel cutout with flat or high actuator
- IP67 seal rating and -40°C to +85°C operating temperature
- Illuminated ring, dot, power symbol or non-illuminated options
- Multiple LED colors, including RGB
- Stainless steel or black anodized finish; silver or gold contacts

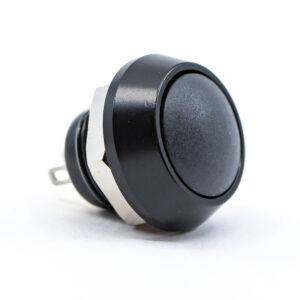

PV5 Series: PRODUCT PAGE | DATA SHEET
- 12mm diameter panel cutout with raised or domed actuator
- IP65 seal rating and -40°C to +85°C operating temperature
- Nickel, stainless steel or black anodized body finish; silver or gold contacts
- Multiple actuator finish and color options
- Solder, screw or wire leads for termination
Round Pushbutton Switch for Flashlight and Portable Lighting

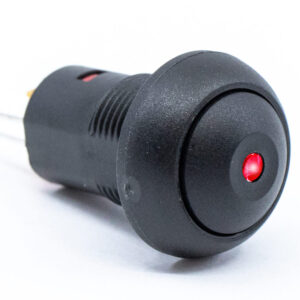

RP8200 Series: PRODUCT PAGE | DATA SHEET
- 13.6mm diameter panel cutout, threaded mount
- IP67 rated protection against dust and moisture
- Many non-illuminated cap color or LED illuminated color options
- 350gf actuation with 200,000-cycle life expectancy
- SPST; maintained/latching function

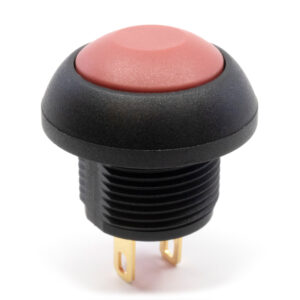

RP8700 Series: PRODUCT PAGE | DATA SHEET
- 13.6mm diameter panel cutout
- IP68 rated protection against dust and moisture
- Round, high or domed button; many LED and color options
- Life expectancy of 500,000 cycles
- Five different termination options to suit your design
Round Rocker Switch for Flashlight and Portable Lighting

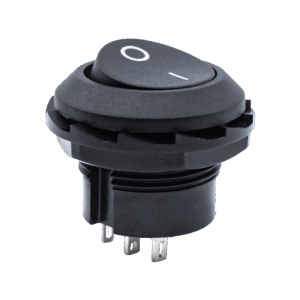

RR3130 Series: PRODUCT PAGE | DATA SHEET
- Ergonomic Euro design with 18.2mm panel cutout
- Contact Rating: 10A @ 125VAC, 6A @ 250VAC (UL, cUL)
- I/O or no marking actuator style options
- SPST, DPDT or SPDT
- Black, white or red color options

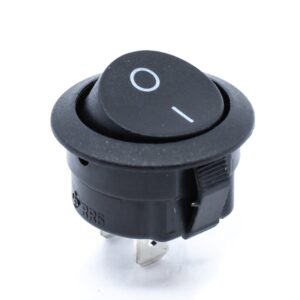

RR5 Series: PRODUCT PAGE | DATA SHEET
- 20mm panel cutout with a short body design for low clearance application
- Contact Rating: 20A @ 125VAC, 12A @ 250VAC (UL, cUL)
- SPST; momentary or latching function
- 4.8mm tab, PCB Pins, solder or wire leads termination
- Many body, actuator and marking color and style options
When designing a flashlight, the switch is one of the most crucial factors to consider. The switch directly impacts how users interact with the flashlight, making it imperative to understand the various switch options available and their respective benefits.
Whether it’s for home emergencies, outdoor adventures or industrial tasks, E-Switch can help you move from prototyping to production with the perfect switch solution!
