In certain environments, the basic action of a finger actuating an electromechanical switch can lead to the flow of electrostatic discharge (ESD) through the switch and integrated circuit. ESD is harmful to the life and performance of electronic components, eventually leading to potential interface damages, burnouts or ruptures. The purpose of a ground (GND) terminal on a tact switch is to act as a shield against electrostatic discharge.
Tactile switches with a ground termination option, where the circuit is designed so that static electricity is released from the ground terminal, are used when reducing the risk of damaging the circuit due to static electricity is needed.
E-Switch Products: Tact Switch with Ground Terminal
TL6105 Series Sealed, Through Hole Tactile Switch with Earth Ground Terminal
- IP67 rating
- Through hole mounting design
- 7.4mm x 7.4mm
- 130gf, 160gf, 300gf or 500gf operating force options
- Many different actuator height choices with up to 1,000,000-cycle life expectancy (50mA, 12VDC)
TL1030 Series Miniature SMT Tactile Switch (GND Terminal Option)
- Surface mount (SMT) design
- 3.5mm x 2.9mm
- 160gf, 200gf, 350gf or 500gf operating force
- J-lead termination
- Up to 200,000-cycle life expectancy (50mA, 12VDC)

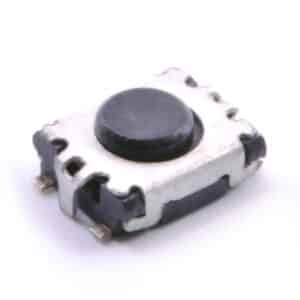

TL1018 Series Miniature SMT Tactile Switch (GND Terminal Option)
- Surface mount (SMT) design
- 3.5mm x 2.6mm
- 160gf, 240gf, 340gf or 450gf operating force
- Mounting boss option
- Up to 500,000-cycle life expectancy (50mA, 12VDC)
TLE3303 Series SMT Tactile Switch (GND Terminal Option)
- Surface mount (SMT) design
- 6mm x 6mm
- 100gf, 160gf or 260gf operating force
- Multiple actuator height options
- Gull wing termination
To view E-Switch’s complete selection of tactile switches, follow this link. Alternatively, use our advanced parametric search to find the exact product you’re looking for.
