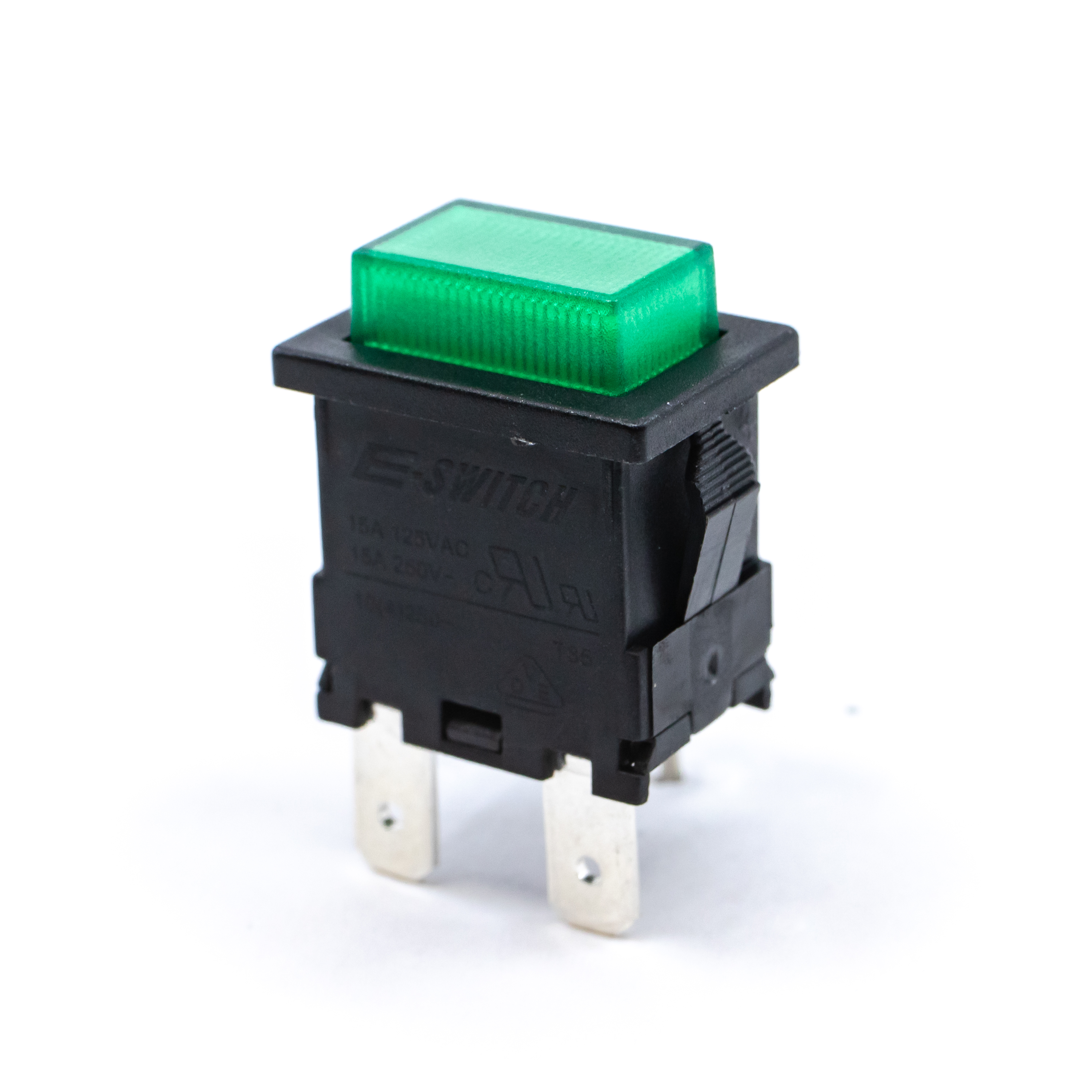

PB1973 Series Illuminated, Power Pushbutton Switch
Stock Check for PB1973BBLKGILEF0
Not the product you are looking for? Configure your product
PUSHBUTTON, 15A, 250VAC, SPST, Off-(On), Panel Mount, Snap-In
About PB1973 Series
- Electrical Rating: 15A @ 250VAC with UL certification; 10A @ 250VAC VDE certified
- 13mm x 19.2mm panel cutout
- Full illumination options and multiple actuator colors
- SPST or DPST circuits; maintained (latching) or momentary functions
- Operating Temperature: -10°C to +55°C
PB1973 Series Markets
Product Specifications
PB1973BBLKGILEF0
PUSHBUTTON, 15A, 250VAC, SPST, Off-(On), Panel Mount, Snap-In
- Series Name PB1973
- PackagingBulk
- Current Rating15A
- Voltage Rating250VAC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.187"
- Actuator TypeRectangular, Button
- Actuator ColorGreen
- Illumination Style-
- Illumination Color-
- Panel Cutout DimensionsRectangular - 19.2mm x 13mm
- Operating Temperature-10°C to 55°C
Support for PB1973BBLKGILEF0
Not the product you are looking for? Configure your product
