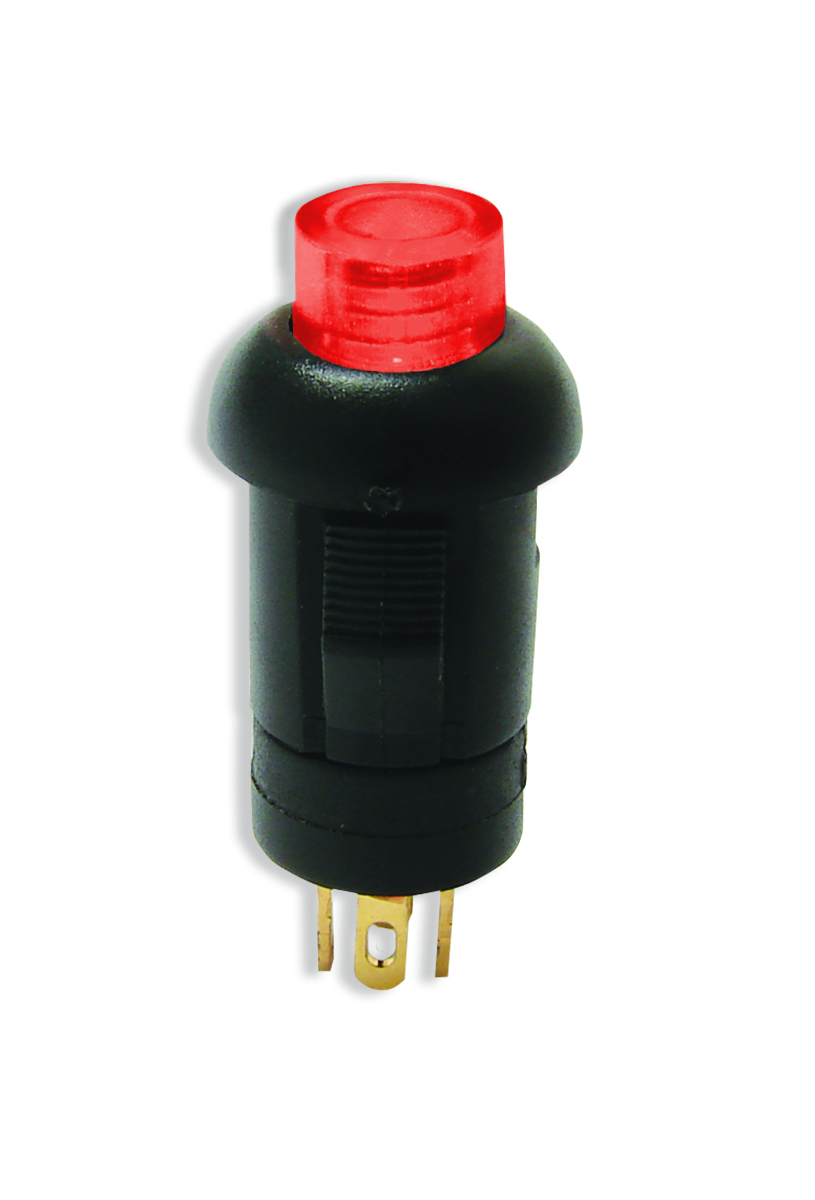

LP1 Series Illuminated, Round Pushbutton Switch
Stock Check for LP1OA1AR
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, SPST, Off-(On), Panel Mount, Snap-In, Illuminated
About LP1 Series
- Panel mount, round cutout of 8mm
- 5.4mm cap size
- Aesthetic look
- Full LED illumination options in multiple colors (blue, green, red, white or yellow)
- Storage/Operating Temperature: -40°C to 85°C
- Contact Rating: 100mA @ 30VDC
- Mechanical/Electrical Life: 50,000 cycles
- SPST, momentary pushbuttons
- Travel: 1.8mm
- Operating Force: 250gf
LP1 Series Markets
Product Specifications
LP1OA1AR
PUSHBUTTON, 100mA, 30VDC, SPST, Off-(On), Panel Mount, Snap-In, Illuminated
- Series Name LP1
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Snap-In
- Termination TypeSolder
- Actuator TypeRound, Button
- Illumination ColorLED, Red
- Illumination Voltage2.0VDC
- Panel Cutout DimensionsCircular - 8mm Dia.
- Operating Temperature-40°C to 85°C
Support for LP1OA1AR
