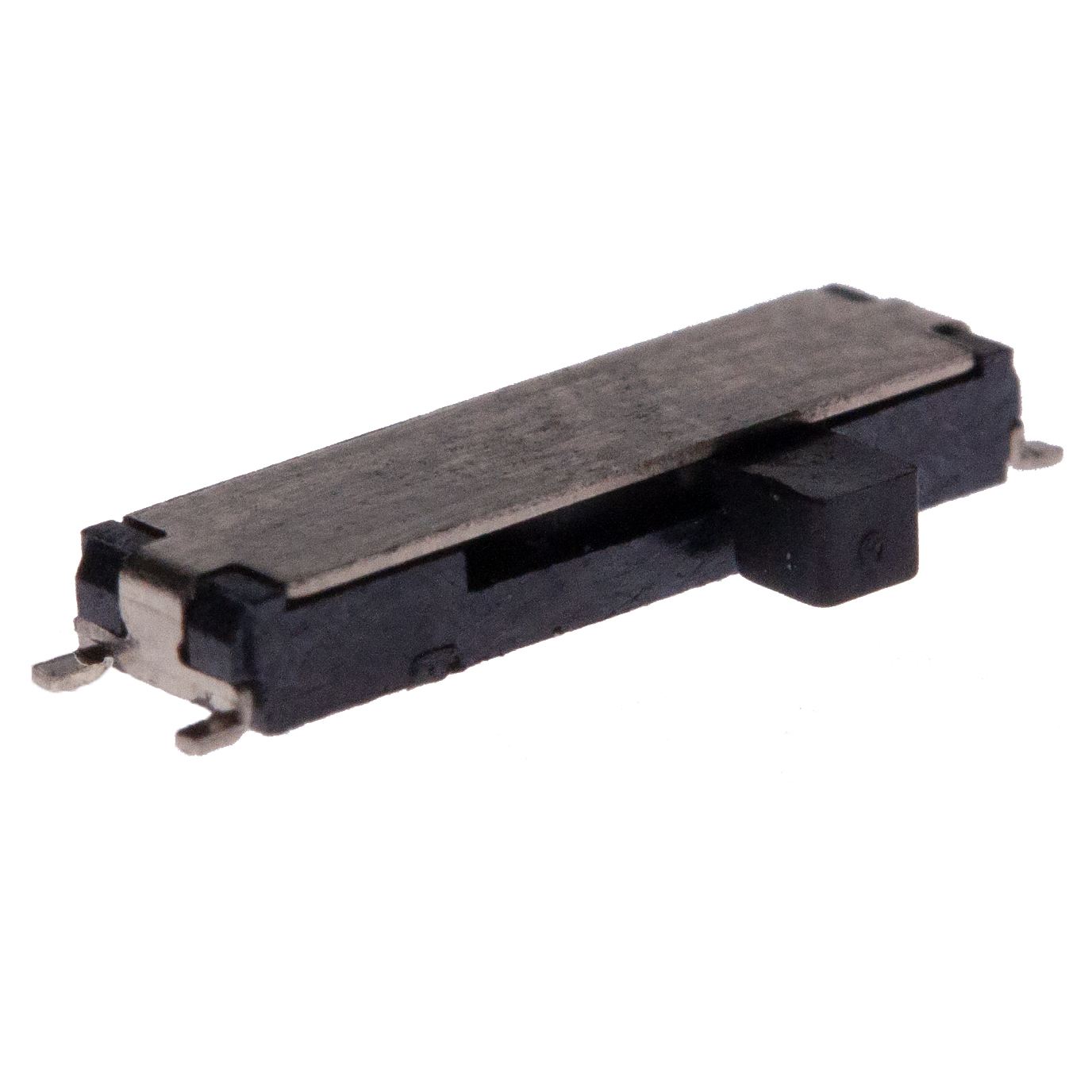

EG1315 Series SMT Right Angle Slide Switch
EG1315 Series SMT Right Angle Slide Switch
Stock Check for EG1315AA
Not the product you are looking for? Configure your product
SLIDE, 25mA, 24VDC, SP3T, On-On-On, Surface Mount, Right Angle
About EG1315 Series
- 25mA @ 24VDC
- Surface mount right angle (SMT) design
- SP3T circuit; latching function
- Compact 2.60mm x 9.70mm size; 1.4mm height off pcb
- 1.50mm travel to any position
- 150-200gf operating force
- 10,000 cycle life
- -20°C to 70°C operating temperature
EG1315 Series Markets
Product Specifications
EG1315AA
SLIDE, 25mA, 24VDC, SP3T, On-On-On, Surface Mount, Right Angle
- Series Name EG1315
- PackagingTape & Reel
- Current Rating25mA
- Voltage Rating24VDC
- CircuitSP3T
- FunctionOn-On-On
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Actuator TypeStandard
- Actuator Height1.40mm
- Operating Temperature-20°C to 70°C
