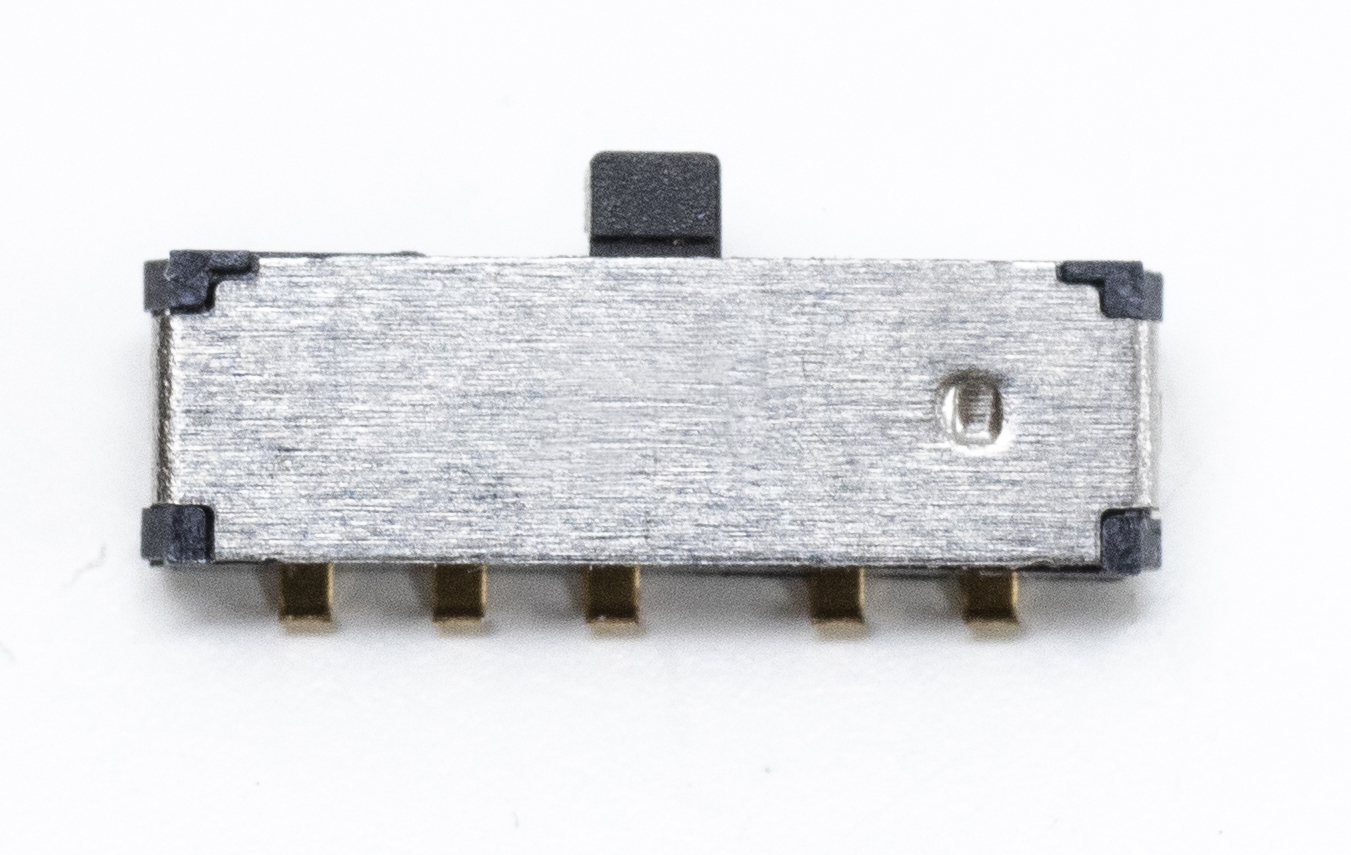

EG1312 Series SMT Right Angle Slide Switch
EG1312 Series SMT Right Angle Slide Switch
Stock Check for EG1312AR
Not the product you are looking for? Configure your product
SLIDE, 300mA, 15VDC, SP3T, On-On-On, Surface Mount, Right Angle
About EG1312 Series
- 30mA @ 15VDC
- Surface mount right angle (SMT) design
- SP3T circuit; On-On-(On) function
- latching function in the left and center position, momentary function in the right position
- Compact 3.0mm x 9.9mm size; 1.5mm height off pcb
- 1.50mm travel to any position
- 150gf operating force
- 5,000 cycle life min.
- -10°C to 60°C operating temperature
EG1312 Series Markets
Product Specifications
EG1312AR
SLIDE, 300mA, 15VDC, SP3T, On-On-On, Surface Mount, Right Angle
- Series Name EG1312
- PackagingTape & Reel
- Current Rating300mA
- Voltage Rating15VDC
- CircuitSP3T
- FunctionOn-On-On
- Mounting TypeSurface Mount, Right Angle
- Termination TypePC Pin
- Actuator TypeStandard
- Actuator Height1.00mm
- Operating Temperature-10°C to 60°C
