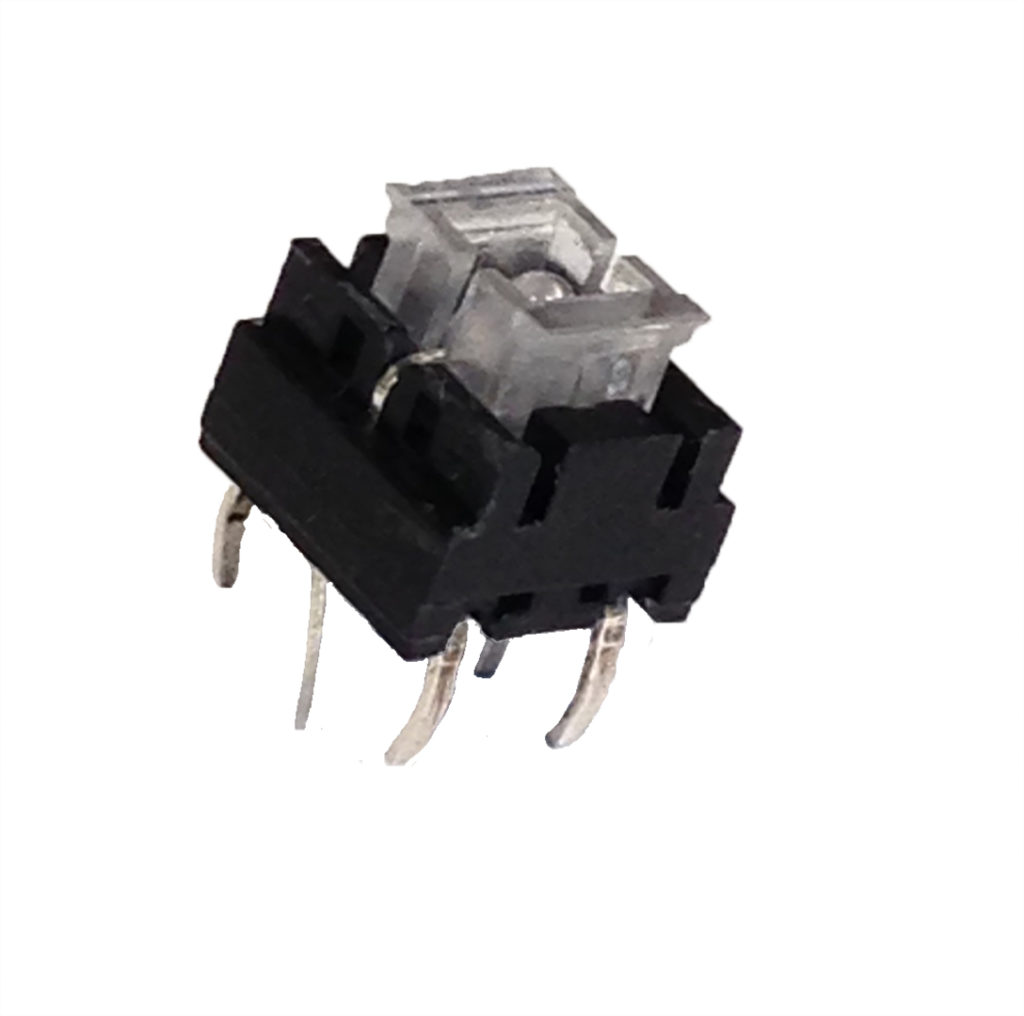

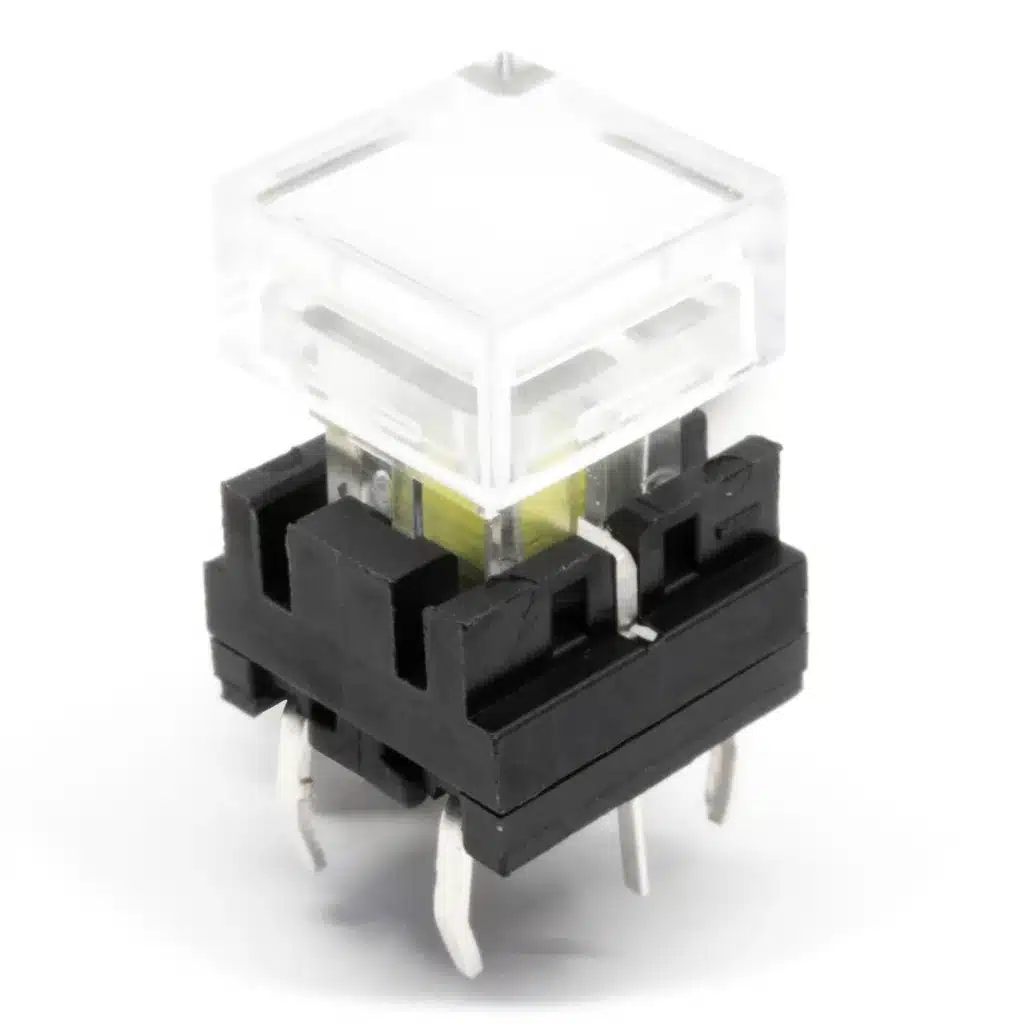

TL6275 Series Subminiature, LED Illuminated Tactile Switch
The TL6275 Series is a compact, 8mm by 8mm square, through-hole, LED illuminated tactile switch. This tact switch has a 350-gram actuation force with nominal travel of 0.25mm. It is available in five LED color options and offers four lens or cap style options. The operating and storage temperature ranges on these tact switches from -25 to 70°C. They have a life expectancy of 100,000 cycles. Applications for this LED illuminated tact switch include:
- Audio/visual
- Computer peripherals
- Consumer electronics
- Instrumentation
- Security devices
- Medical equipment
FEATURES
- PCB mounting design
- Illumination options
- Multiple cap/lens options
- 100,000 cycle life expectancy
- Capable of withstanding a typical water wash
