TL6170 Series Mid-sized, Sealed Tactile Switch with Tall Actuator

The TL6170 Series mid-sized, tact switch offers either a 7.2mm or 7.7mm tall actuator with a firm tactile response. Rated IP67 for dust and moisture protection, these sealed tactile switches provide a 300,000-cycle life expectancy and operates in temperatures ranging from -40°C to 85°C. Additional features of this mid-sized tact switch include SPST Off-(On) function, 50mA, 12VDC electrical rating, dielectric strength of 250VAC for 1 minute, actuator travel of 0.40mm, and it comes in tactile tape and reel packaging (800 pc/reel). Applications for these sealed tactile switches include:

  • Audio/visual equipment
  • Consumer electronics
  • Telecommunications devices
  • Medical equipment
  • Computer peripherals
  • Testing/instrumentation equipment


  • Up to 300,000 cycle life expectancy
  • Tactile tape and Reel packaging
  • IP67 rating
  • Surface mount design
  • Actuation force options and two tall actuator options

TL6170 Series Mid-sized, Sealed Tactile Switch with Tall Actuator

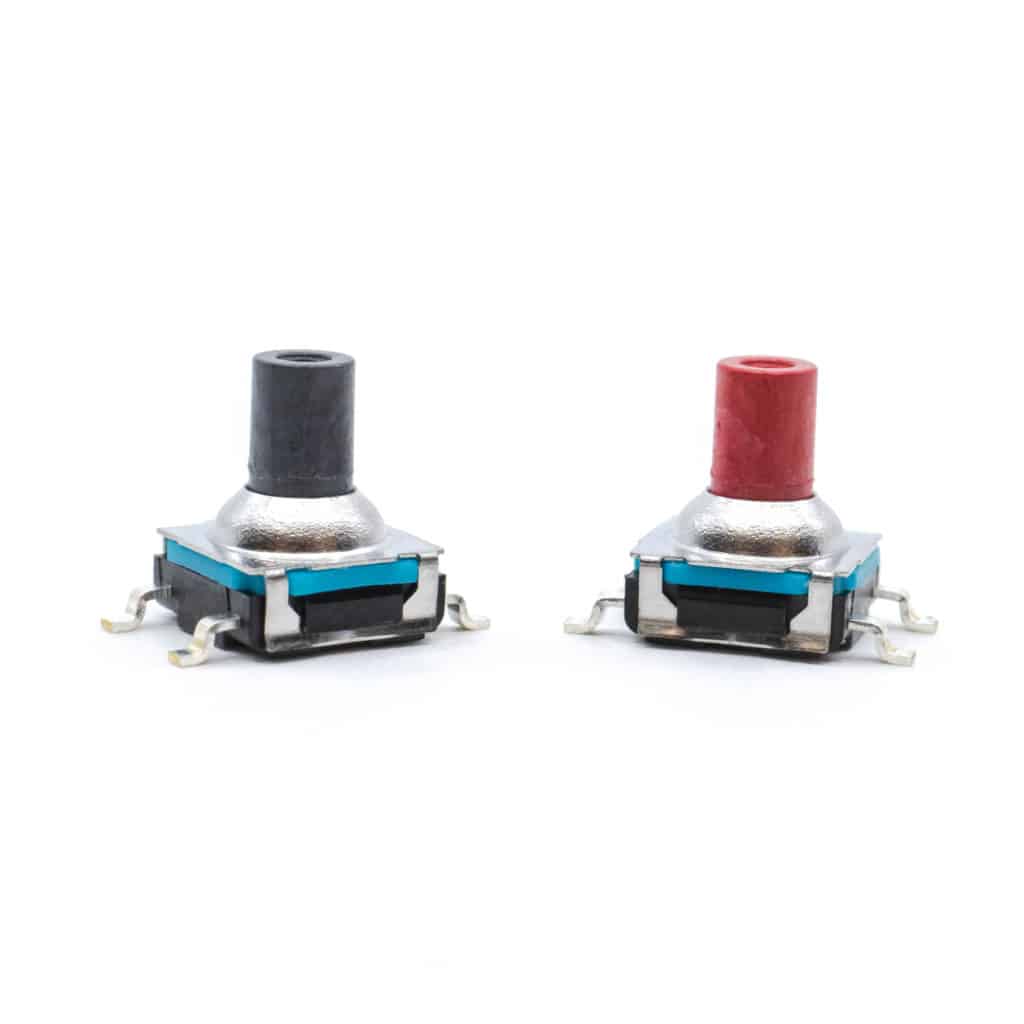

decoration Tl6170af180 Af250 Qg



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl6170af180 Af250 Qg

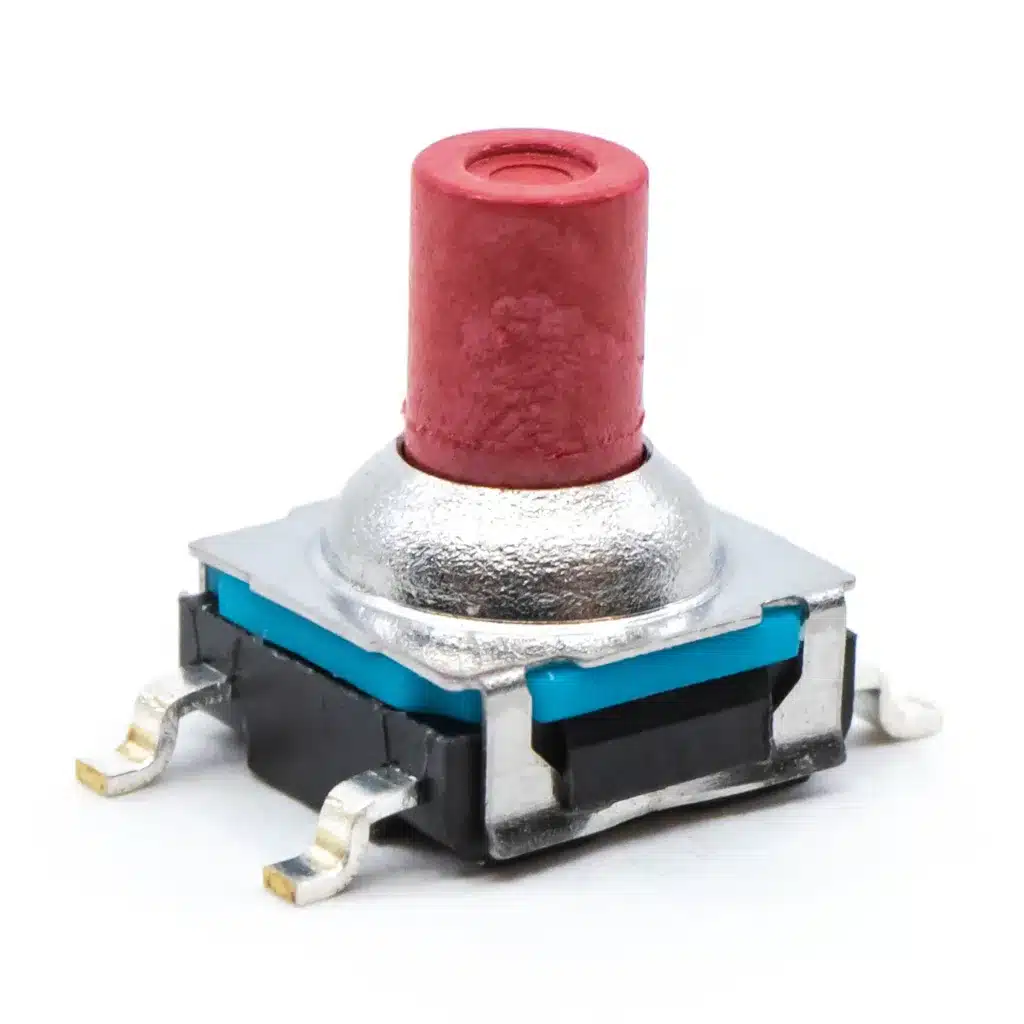

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC ELECTRICAL LIFE: 300,000 Cycles CONTACT RESISTANCE: 100mΩ Max. (Initial) INSULATION RESISTANCE: 10MΩ Min. @ 100VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING/STORAGE TEMPERATURE: -40°C to 85°C OPERATING FORCE: 250gf ± 80gf or 180gf ± 80gf TRAVEL: 0.40mm ± 0.20mm DUST/MOISTURE PROTECTION: IP67 FUNCTION: SPST, Off-(On) BOUNCE: 10msec Max. CONTACT MATERIAL: Silver PACKAGING: Tactile Tape and Reel (800 pcs/reel)
