TL6105 Series Process Sealed Tactile Switch with Earth Ground Terminal

The TL6105 Series tactile switch has an earth ground terminal. This tact switch offers multiple actuator heights and a long operating life of up to one million cycles. This process sealed tact switch has multiple operating force options: 130gf, 160gf, 300gf, or 500gf. The TL6105 Series tactile switches are 7.4mm x 7.4mm in size and are sealed to protect against the elements. These tact switches operate at temperatures ranging from -40 to 85°C, so they are a great choice regardless of climate. Applications for this process sealed tact switch include, but aren't limited to:

  • Consumer electronics
  • Telecommunications
  • Audio/visual
  • Medical
  • Computer servers
  • Testing/instrumentation

FEATURES

  • Process sealed tact switch with earth ground terminal
  • 130gf, 160gf, 300gf, and 500gf operating force options
  • Long life of up to 1 million cycles

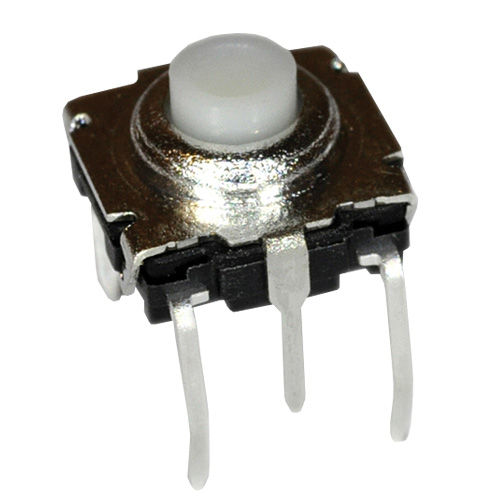

TL6105 Series Process Sealed Tactile Switch with Earth Ground Terminal

decoration Tl6105 Series

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl6105 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC CONTACT RESISTANCE: 100mΩ Max (initial) INSULATION RESISTANCE: 100 MΩ Min. @ 100VAC DIELECTRIC STRENGTH: 250VAC for 1 minute ELECTRICAL LIFE: 130gf: 1,000,000 cycles; 160gf: 1,000,000 cycles; 300gf: 500,000 cycles; 500gf: 200,000 cycles OPERATING/STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 0.50mm DUST/MOISTURE PROTECTION: Process sealed ACTUATION FORCE: 130gf, 160gf, 300gf, 500gf CONTACT ARRANGEMENT: SPST
