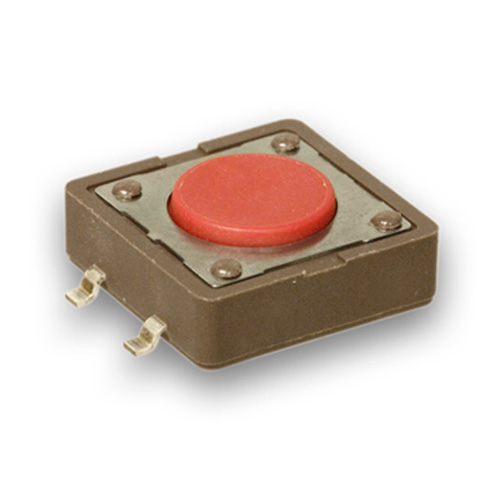

TL3300 Series Long Life, SMT Tactile Switch
TL3300 Series Long Life, SMT Tactile Switch
- Surface mount (SMT) design
- 12mm x 12mm
- 130gf, 160gf, 260gf, 320gf, or 520gf operating force
- Multiple actuator height options
- Long life up to 10,000,000 cycles
- Silver contact material
- -25 to 70°C operating temperature
- 50mA @ 12VDC
TL3300 Series Long Life, SMT Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- LIFE EXPECTANCY: Up to 200,000 Cycles
- CONTACT RESISTANCE: 100mΩ Max.
- IINSULATION RESISTANCE: 100MΩ Min. 500VDC
- DIELECTRIC STRENGTH: 250VAC for 1 Minute
- OPERATING TEMPERATURE: -25°C to 70°C
- OPERATING FORCE: 130gf (10,000,000 cycles), 160gf (200,000 cycles); 260gf (100,000 cycles); 320gf (100,000 cycles); 520gf (100,000 cycles)
- TRAVEL: 0.35mm
- FUNCTION: SPST; Off-(On), Momentary
