TL2205 Series Illuminated Pushbutton Switch

TL2205 Series Illuminated Pushbutton Switch

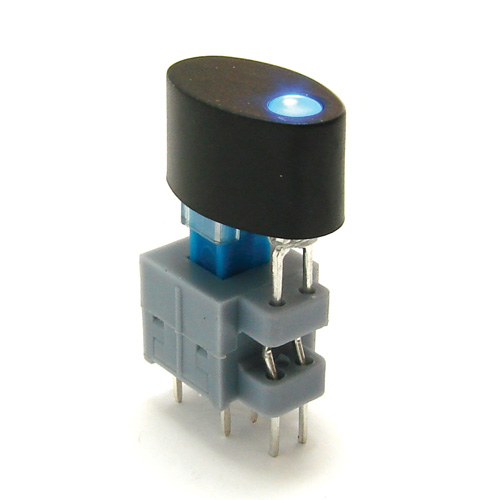

The TL2205 Series illuminated pushbutton switches are available as either maintained (latching) or momentary push buttons featuring long travel and a variety of LED colors: blue, red, green, yellow, or none. An optional black cap with an LED window is also available. The TL2205 Series illuminated pushbutton switch has a double pole, double throw (DPDT) circuit. Full travel of the push button is 2.5mm. The maintained version of the switch latches at 1.5mm. Both versions require 250 grams of operating force to actuate. Applications for this illuminated pushbutton switch include:

  • Telecommunications
  • Networking
  • Lower power on/off designs
  • Performance audio

FEATURES

  • Multiple LED illumination colors
  • Optional cap with LED window
  • 100mA, 30VDC electrical rating
  • Through-hole mounting design
  • DPDT, maintained (latching) or momentary pushbuttons

TL2205 Series Illuminated Pushbutton Switch

decoration Tl2205 Series

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl2205 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 100mA @ 30VDC MECHANICAL LIFE: 10,000 Cycles CONTACT ARRANGEMENT: DPDT CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 100MΩ Min. at 500VDC DIELECTRIC STRENGTH: 500VAC OPERATING FORCE: 250gf ± 100gf TRAVEL: Full: 2.5 ± 0.3mm; To Lock: 1.5 ± 0.3mm OPERATING/STORAGE TEMPERATURE: -20°C to 70°C / MATERIALS / HOUSING: PBT ACTUATOR: Acetal COVER: Acetal CONTACTS: Silver plated phosphor bronze TERMINALS: Silver plated copper alloy SPRING: Stainless steel Latching PIN: Stainless steel
