Many housing and actuator color options
Eight actuator marking options
Non-illuminated
Glossy finish
-20°C to 105°C operating temperature
" />

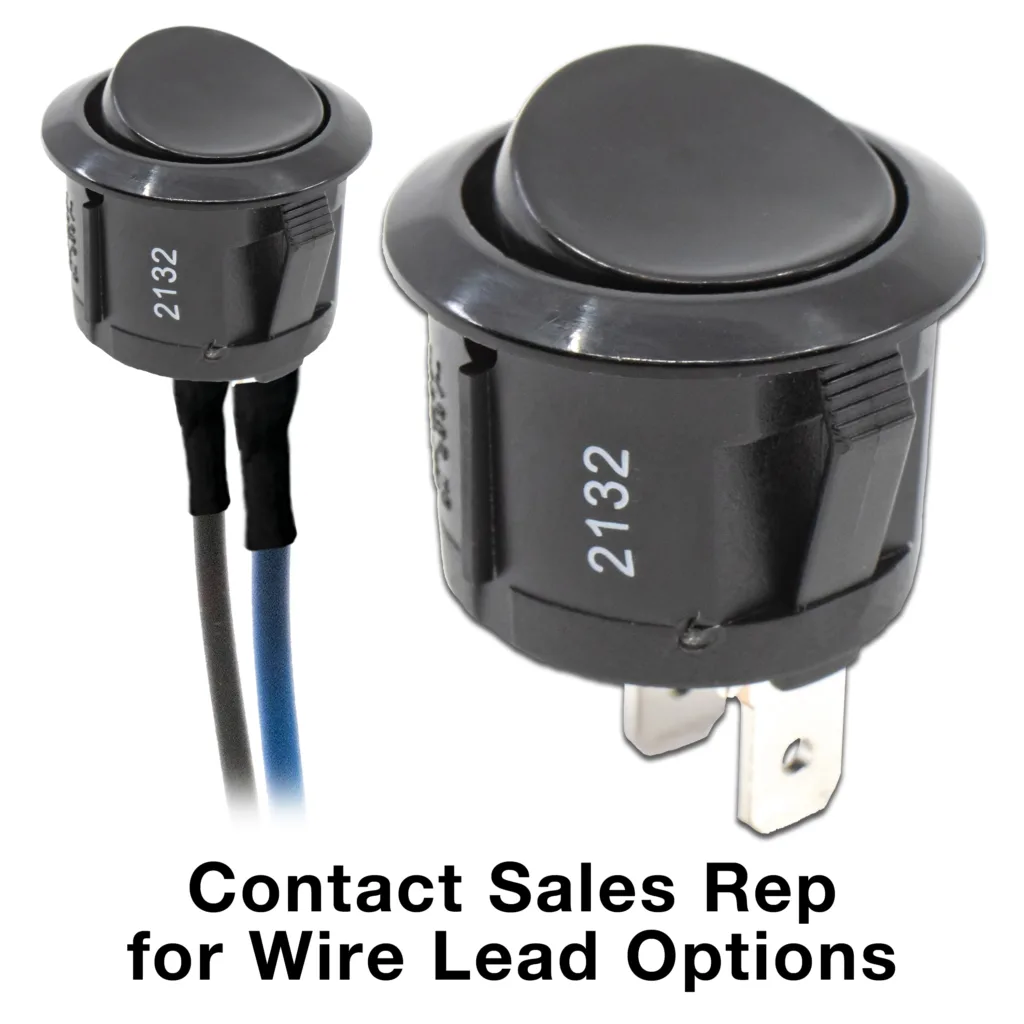

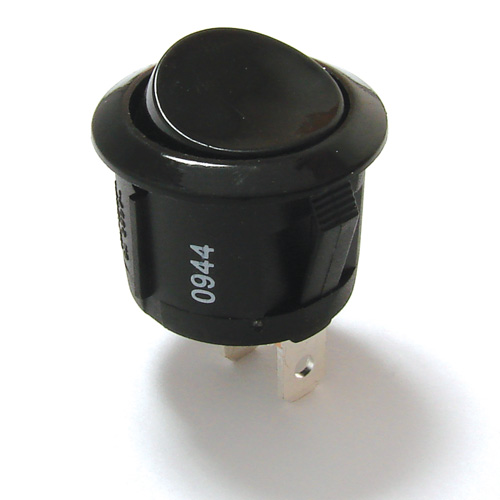

RRG3 Series Round, Power Rocker Switch
RRG3 Series Round, Power Rocker Switch
- 20mm panel cutout
- Up to 16A, 125VAC, 1/3HP; UL, cUL
- SPST or SPDT; momentary or latching function
- Panel mount snap-in design
- Quick connect - 0.187" or solder termination
- Many housing and actuator color options
- Eight actuator marking options
- Non-illuminated
- Glossy finish
- -20°C to 105°C operating temperature
RRG3 Series Round, Power Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: Option C: 16A @ 125VAC [UL, cUL]; 10A @ 250VAC [UL, cUL]; 1/3HP @ 125/250VAC [UL, cUL]; Option 3: 10A @ 125VAC [UL, cUL]; 6A @ 250VAC [UL, cUL]
- OPERATING/STORAGE TEMPERATURE: -20°C to 105°C [UL, cUL]
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 35mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min. at 500VDC
- DIELECTRIC STRENGTH: 1,500VAC for 1 Minute
