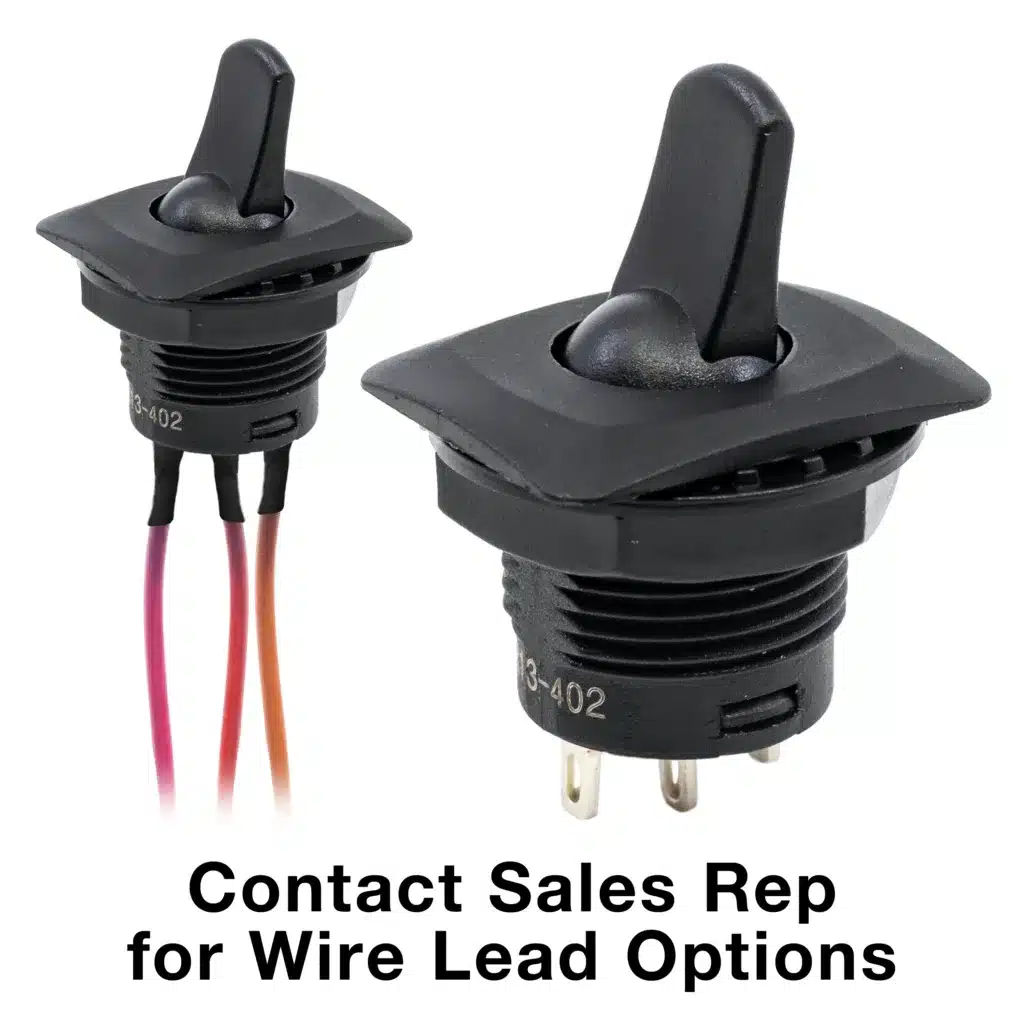

RR3402 Series Round, Paddle Style Power Rocker Switch

The RR3402 Series round, paddle style power rocker switch has an ergonomic feel with multiple single-pole circuit options for performing the following functions: On-None-Off (SPST), On-None-On (SPDT), and On-Off-On (SPDT). This The RR3402 Series power rocker switch is meant for a round panel cutout sized 15mm in diameter. These power rocker switches have electrical ratings of 6A of 125VAC and 3A of 250VAC with [cURus] approvals. Applications for this paddle style power rocker switch include:

  • Industrial
  • Audio/visual
  • Lighting ballast

FEATURES

  • 6A, 125VAC or 3A, 250VAC electrical ratings with cURus certification
  • 15mm diameter panel cutout
  • Ergonomic, paddle style actuator
  • 1 pole; maintained (latching) functions

RR3402 Series Round, Paddle Style Power Rocker Switch

decoration Rr3402 Series

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Rr3402 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 6A @ 125VAC; 3A @ 250VAC MECHANICAL LIFE: 20,000 Cycles ELECTRICAL LIFE: 6,000 Cycles CONTACT RESISTANCE: 50mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ @ 500VDC DIELECTRIC STRENGTH: 1,500VAC for 1 Minute OPERATING/STORAGE TEMPERATURE: 0°C to 65°C / MATERIALS / TERMINATION: Solder Lug, Silver-Plated
