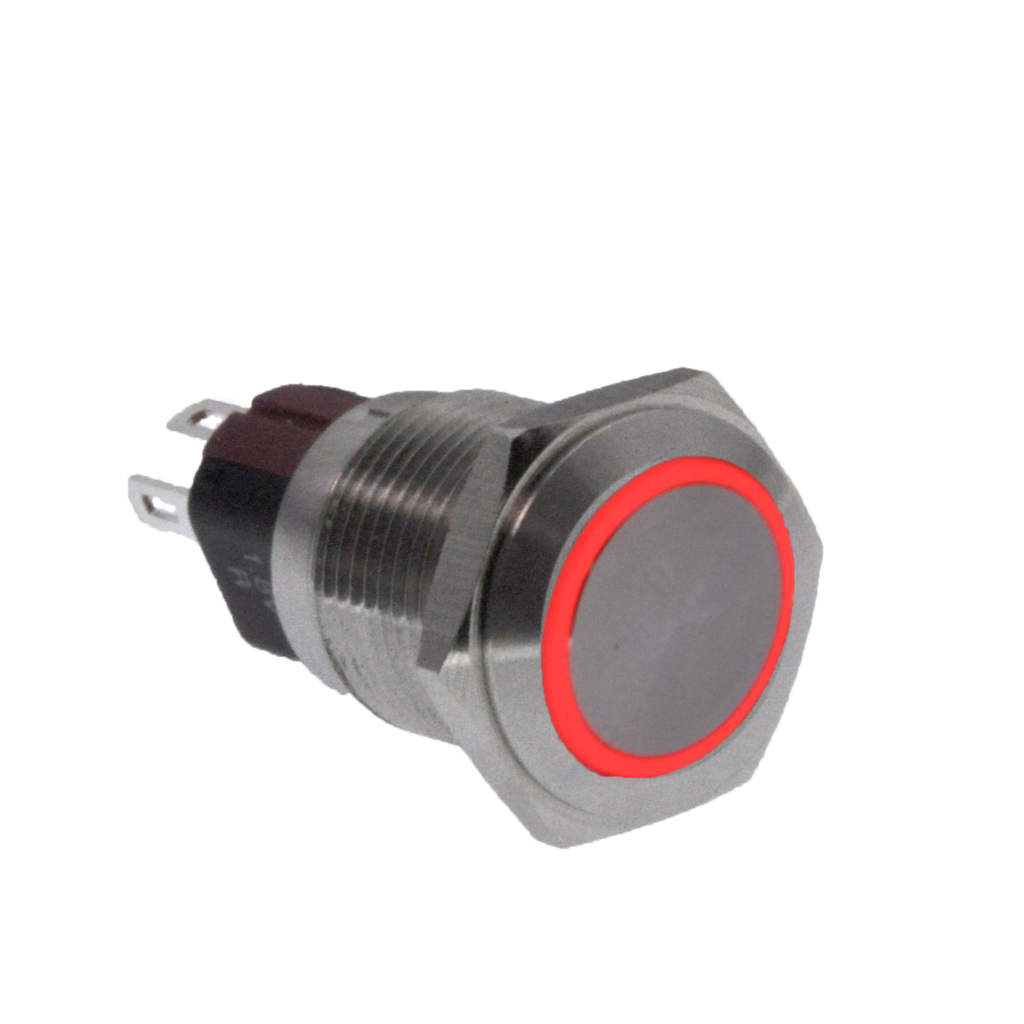

PVA3 Series Illuminated Anti-vandal Switch

PVA3 Series Illuminated Anti-vandal Switch

***THE PVA3 IS NOT RECOMMENDED FOR NEW DESIGNS — SEE THE PVB3 SERIES FOR THE LATEST GENERATION OF THIS SWITCH (EFFECTIVE 02/01/24)***


The PVA3 Series anti-vandal switches require a 16mm panel cutout. They provide ring illumination with multiple LED color options, including RGB. You can choose either a flat or high actuator and momentary or latching function for these pushbutton switches. The PVA3 Series contact arrangement comes in SPDT and provides IP65 rated protection against dust and moisture. This anti-vandal switch offer a choice of nickel, stainless steel, or black anodized finish for the body and actuator. The PVA3 Series provides an electrical rating of 2A, 36VDC, a mechanical life of 500,000 cycles, 3.0mm of actuator travel, and solder lug terminals. Applications for the PVA3 Series anti-vandal switch include:
  • Commercial appliances
  • Security devices
  • Industrial controls
  • Kiosk panels
  • Electrical houseware
  • Medical equipment

FEATURES

  • IP65 rated for dust and moisture protection
  • 16mm panel cutout
  • Ring illumination option
  • Multiple LED color options
  • Momentary or maintained (latching) functions

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pva3 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

PVA3F230SS3R1
PVA3F2B0SS3R1

Detail Specifications

ELECTRICAL RATING: 2A @ 36VDC MECHANICAL LIFE: 500,000 Cycles ELECTRICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 1000 MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 1,500VAC OPERATING/STORAGE TEMPERATURE: -25°C to 55°C TRAVEL: 3.0mm DUST/MOISTURE PROTECTION: IP65 CONTACT ARRANGEMENT: SPDT ACTUATION FORCE: 1.7N PANEL THICKNESS: 1-8mm MOUNTING NUT TORQUE: 5-14Nm
