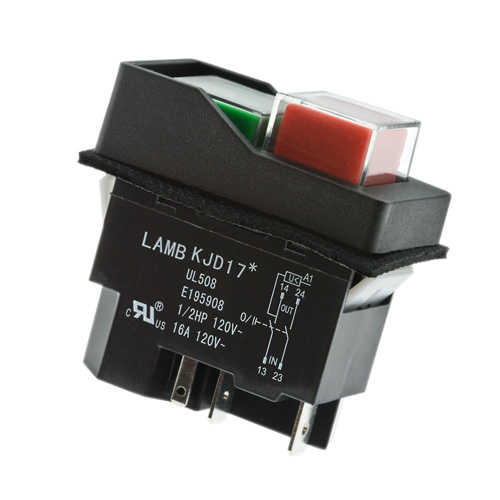

KJD17 Series Heavy Duty, Industrial Power Pushbutton Switch

KJD17 Series Heavy Duty, Industrial Power Pushbutton Switch

The KJD17 Series is a heavy-duty industrial pushbutton switch. Its electromagnet provides automatic safety protection against power outages and restarts. A PVC cap is available for dust and water protection. This heavy-duty industrial pushbutton switch has 2HP electrical ratings and is UL listed. This safety switch is great for industrial applications.

FEATURES

  • 46mm x 22mm x 2.5mm panel cutout
  • 16A, 120VAC, 1/2HP electrical rating
  • IP54 rating for dust and moisture protection
  • Off-On, Off-On with Remote Trip, and NO and NC with Remote Trip functions

Kjd17 Wire

KJD17 Series Heavy Duty, Industrial Power Pushbutton Switch

decoration Kjd17 Wire

Industry Utilization:

CERTIFICATIONS

Rohs Logo Reach Logo UL Logo

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Kjd17 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Links

Most Common Configurations

KJD17-22213-112

Detail Specifications

ELECTRICAL RATING: 16A @120VAC [cURus UL508]; 16A @ 220/240VAC [cURus UL508]; 1/2 HP @ 120VAC [cURus UL508]; 2HP @ 220/240VAC [cURus UL508] OPERATING/STORAGE TEMPERATURE: -25°C to 55°C ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 100MΩ Min. at 500VDC DIELECTRIC STRENGTH: 1,500VAC for 1 Minute DUST/MOISTURE PROTECTION: IP54 with PVC Cap / MATERIALS / BODY: Polyamide 6/6 ACTUATOR: Polyamide 6/6 CONTACTS: Silver Alloy TERMINALS: Silver Plated Brass
