E200 Series Pushbutton Switch

E200 Series Pushbutton Switch

The E200 Series pushbutton switch is easy to operate with an eye-catching red actuator and multiple illumination options (LED, incandescent, neon), along with the required agency approvals. This emergency stop switch (E-Stop) has an IP65 rating, requires a high actuation force (2.0 kgf) and a pushlock turn to reset, making it perfect for harsh and rugged industrial-use environments.

The E200 Series has a 16mm cutout size with 5.0mm MAX panel thickness. The switch has an impressive mechanical life of 100,000 cycles minimum, an electrical life of 50,000 cycles minimum and operates from -25 to 55°C (with lamp) or -25 to 70°C (without lamp). There are four different function options: 1NO/1NC+1NO/1NC, 1NO/1NC, 2NO, 1NO. With its electrical rating, life expectancy and overall dependability, this series is ideal for the following markets:

  • Kiosks
  • Electrical Housewares
  • Security Devices
  • Commercial Appliances
  • Industrial Controls
  • Medical Equipment


  • Easy operation
  • High actuation force
  • Multiple illumination options
  • Pushlock turn design to reset
  • 16mm cutout size
  • IP65 rated


Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

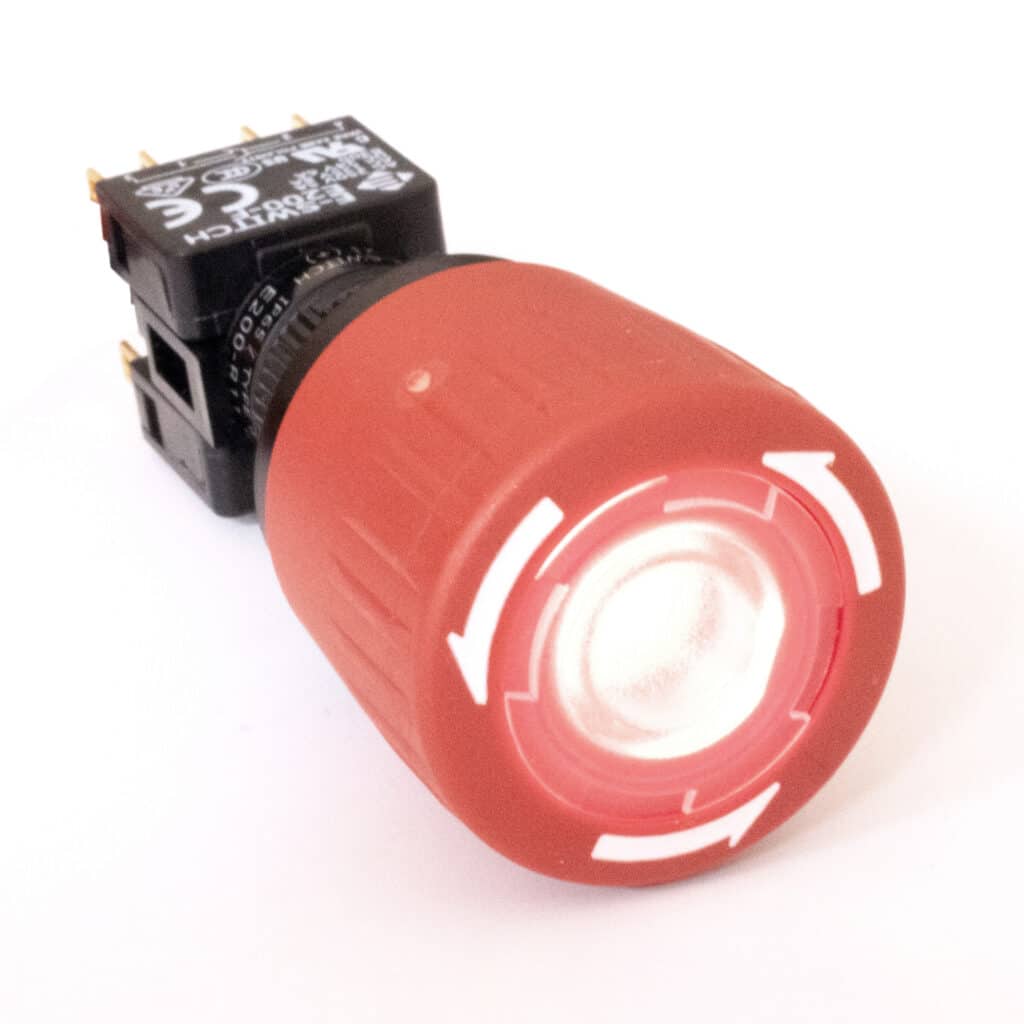

E200 R11 A1kr

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

Detail Specifications

Contact Arrangement: 1NO/1NC+1NO/1NC, 1NO/1NC, 2NO, 1NO Contact Rating: 8A @ 125VAC, 5A @ 250VAC [VDE] (Pending), 6A @24 VDC, 200mA @ 250VDC Agency Approvals: ANSI/UL508, VDE (Pending) Contact Resistance: 50mΩ Max. (Initial) Insulation Resistance: 100 MΩ Min. @ 500VDC Dielectric Strength: 1,500VAC Electrical Life: 50,000 Cycles MIN Mechanical Life: 100,000 Cycles MIN Operating Temperature: -25°C to 55°C (with lamp), -25°C to 70°C (without lamp) Storage Temperature: -40°C to 85°C Actuation Force: 2.0 kgf Panel Thickness: 5.0mm MAX. Moisture Protection: IP65
