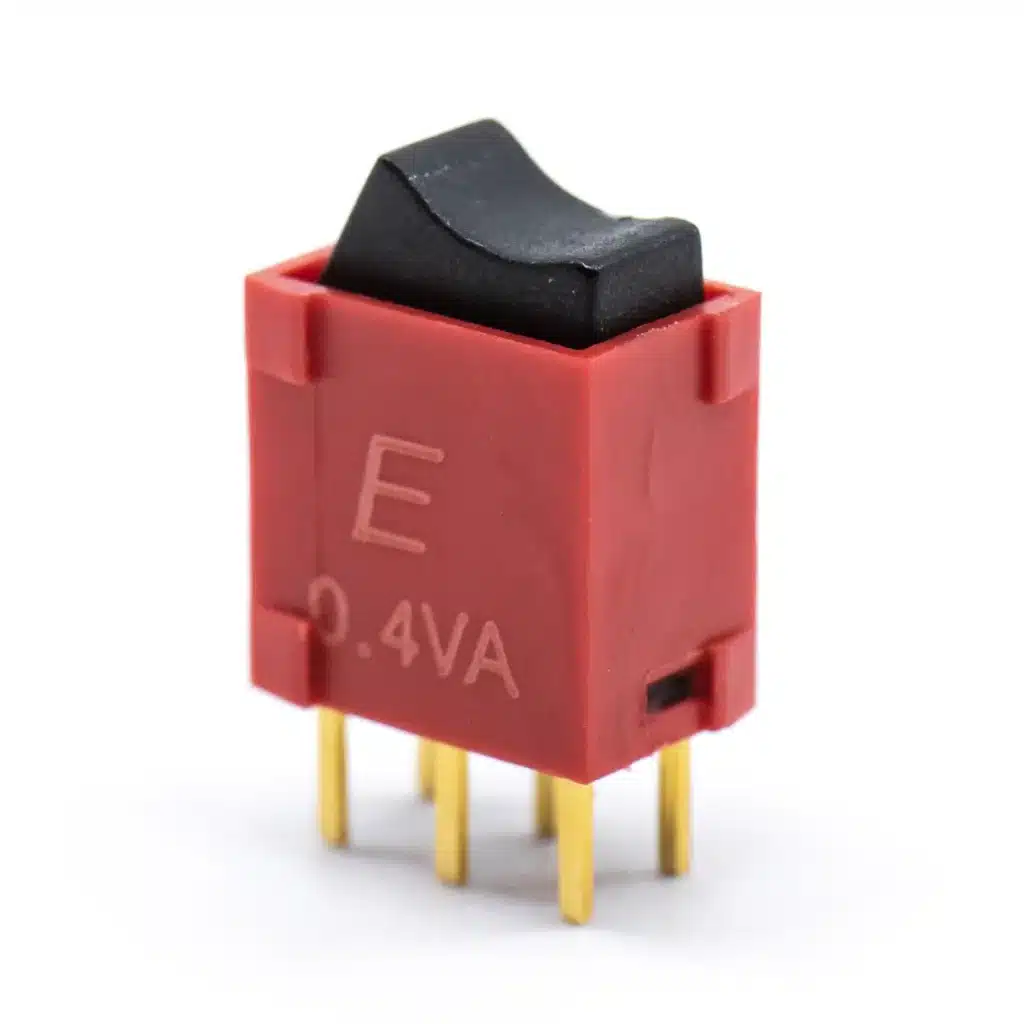

400U Series Ultraminiature Rocker Switch
400U Series Ultraminiature Rocker Switch
- Electrical Ratings:
- Gold - 0.4VA max. @ 20V max. (AC or DC)
- Ultraminiature in size
- DPDT, latching function
- Through hole, through right angle, or through hole right angle vertical mounting options
- Rocker or paddle actuator options
- Multiple actuator color options
- Gold contact material
- Epoxy sealed terminals
- -30°C to 85°C operating temperature
400U Series Ultraminiature Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 0.4VA @ 20V Max (AC or DC)
- LIFE EXPECTANCY: 50,000 cycles
- CONTACT RESISTANCE: 100mΩ initial
- INSULATION RESISTANCE: 500MΩ Min @ 500VDC
- DIELECTRIC STRENGTH: 500VAC
- OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
