What is a radial lead vs axial lead for components like tact switches? Axial lead components have leads coming out of each end of a component, such as a capacitor, resistor or inductor.
Radial lead components, on the other hand, have leads coming out the same side. You might see this feature called out in electromechanical switches, primarily with through-hole tactile switches that feature radial lead packaging.
These tact switches are designed for an automatic assembly feed and high-density, high-speed PCB placement. The process allows for efficient, cost-effective application across popular markets like consumer electronics, telecommunications and industrial production.
With through-hole mounting and sealed ingress protection ratings, these tact switches offer unmatched dependability and usability at a low cost. Below, you’ll find E-Switch’s recently released TL6059 Series — an IP67 sealed tact switch with through hole mounting and radial lead packaging — as well as other tacts with radial leads.
Tactile Radial Lead Switch

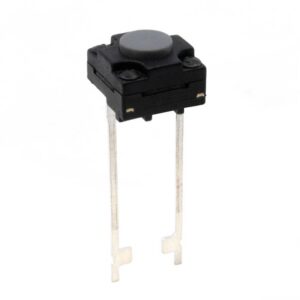

TL6059 Series Sealed, THT, Radial Lead Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67 rated
- 6.00mm x 6.00mm outline
- 100gf or 200gf operating force
- 1,000,000-cycle electrical life (100gf option)
- -30°C to +85°C operating temperature
TL59 Series THT, Radial Lead Switch: VIEW DATA SHEET | CONFIGURATOR
- 6.20mm x 6.20mm outline
- Seven actuator height options
- 100gf, 160gf or 260gf operating force
- 100,000-cycle life
- -20°C to +70°C operating temperature

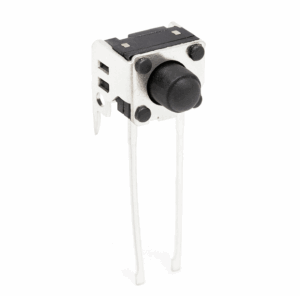

TL58 Series THT Right Angle, Radial Lead Switch: VIEW DATA SHEET | CONFIGURATOR
- Through-hole right angle mounting design
- 7.40mm x 6.65mm outline
- Three actuator height options
- 100gf, 160gf or 260gf operating force
- 100,000-cycle life

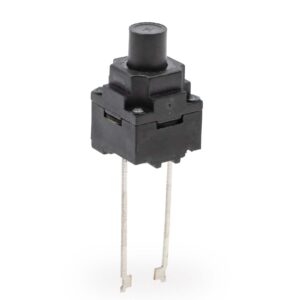

TL52 Series Sealed, THT, Radial Lead Switch: VIEW DATA SHEET | CONFIGURATOR
- IP67 rated
- 8.00mm x 8.00mm outline
- 160gf or 260gf operating force
- 100,000-cycle life
- -25°C to +85°C operating temperature
View E-Switch’s complete selection of tactile switch products by following this link.
