When designing equipment for public, industrial, or outdoor environments, electrical performance is only part of the equation. Switches must also withstand physical abuse, accidental impacts, and harsh operating conditions. That’s where IK ratings come into play.
What Are IK Ratings?
An IK rating is an international standard that measures a product’s resistance to mechanical impact. Defined by IEC 62262, the rating scale ranges from IK00 (no impact protection) to IK10 (the highest standard rating), which represents resistance to a 20-joule impact.
The higher the IK rating, the greater the switch’s ability to withstand impacts from tools, vandalism, accidental strikes, or other physical abuse. For example:
- IK07 = 2 joules of impact resistance
- IK08 = 5 joules of impact resistance
- IK09 = 10 joules of impact resistance
- IK10 = 20 joules of impact resistance
Why Are IK Ratings Important?
Improved Durability
Switches installed in demanding environments are often exposed to repeated physical contact and occasional impacts. Selecting an appropriately rated IK switch helps ensure reliable operation throughout the product’s life.
Protection Against Vandalism
Public kiosks, ticketing machines, access-control systems, EV chargers, and transportation equipment can be targets for intentional abuse. IK-rated anti-vandal switches are specifically designed to resist these impacts and remain functional.
Reduced Maintenance Costs
A more rugged switch means fewer failures, less downtime, and lower replacement costs. This is particularly valuable in equipment that is difficult or expensive to service.
Increased User Safety
Damaged switches can create reliability and safety concerns. Choosing a switch with a proven impact rating helps maintain operational integrity.
E-Switch IK-Rated Solutions
E-Switch offers a broad portfolio of anti-vandal switches designed for high-security and rugged applications. These products are commonly used in industrial controls, kiosks, security equipment, transportation systems, and outdoor electronics.

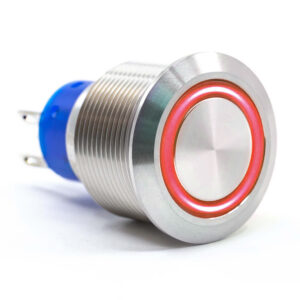

ULV7 Series Anti-Vandal Pushbutton Switch
One standout option is the ULV7 Series, which combines:
- IK10 mechanical impact protection
- 22mm panel cutout
- IP67 sealing
- UL recognition
- Up to 1,000,000 mechanical cycles
- SPDT or DPDT configurations
- Ring or ring/power symbol illumination options
- Multiple LED color options, including bi-color configurations

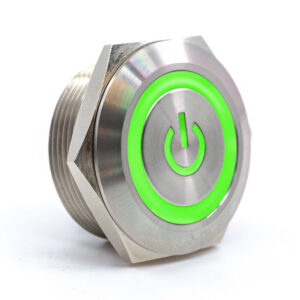

SV8 Series Illuminated, Short Body Anti-Vandal Switch
Another excellent option is the SV8 Series, designed for applications where panel depth is limited but durability cannot be compromised.
- IK10 mechanical impact protection
- Short-body design for space-constrained installations
- 25mm panel cutout
- IP67 sealing
- UL recognition
- Up to 1,000,000 mechanical cycles
- SPST momentary function
- Ring or ring/power symbol illumination options
- Multiple LED color options, including bi-color configurations
- Solder terminals, wire leads, and connector options available
