E-Switch offers a variety of sealed rocker switch products, including ingress protection at the IP67 and IP68 levels. Additional benefits include the potential for illumination, custom actuator markings, momentary or latching functionality, single pole or double pole circuits, two or three actuator positions and a variety of termination options, including wire leads.
Below, you’ll find a selection of E-Switch sealed rocker products for both panel (standard size) and PC (miniature size) mounting. You can browse our complete selection of rocker switches by following this link.
Sealed Rocker Switch Options (Standard Size)
RRS20 Series
- IP68 from panel
- 20mm diameter panel cutout size
- Up to 16A, 250VAC; UL and ENEC listed
- SPST or SPDT circuit; two or three positions
- Quick connect, solder or wire leads (300mm long) termination
- Non-illuminated (black) or illuminated actuator (white, orange, green, red or blue)
- Five actuator marking options in black or white

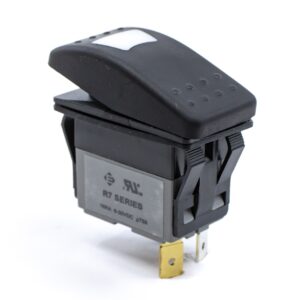

R7 Series
- IP67 seal rating
- 37mm x 21.2mm panel cutout size
- Up to 20A, 125VAC; UL
- Single or double pole circuits with up to three actuator positions
- Solder, quick connect (0.250″) or screw termination options
- Many actuator styles and custom actuator markings available
- LED illumination options, including dual LED
RB3 Series
- IP67 seal rating
- 30.2mm x 13.8mm panel cutout size
- Up to 25A, 125VAC; UL and ENEC listed
- SPST or SPDT; momentary or latching functions
- Panel mount snap-in design
- Illuminated, dual illuminated or non-illuminated options
- Eight actuator marking options
RB5 Series
- IP67 seal rating
- 30.2mm x 22mm panel cutout size
- Up to 25A, 125VAC; UL, ENEC
- DPST or DPDT; momentary or latching function
- Panel mount snap-in design
- Illuminated, dual illuminated or non-illuminated options
- Eight actuator marking options
Sealed Rocker Switch (Miniature and PCB Size)

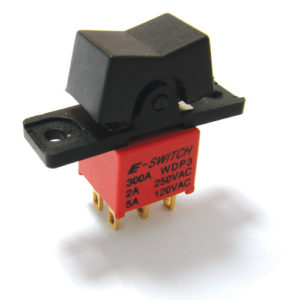

300A Series
- IP67 seal rating
- Electrical Ratings (silver or gold contacts):
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC; UL, cUL
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- SPDT, DPDT; momentary or latching functions
- Eight types of panel mount and through hole mounting options, including right angle, vertical and snap-in bracket
- Multiple termination options, including PCB pin, quick connect, solder lug and wire leads
- 10 types of rocker and paddle actuator options

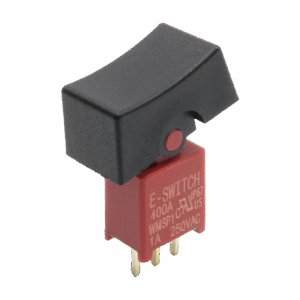

400A Series
- IP67 seal rating
- Electrical Ratings (silver or gold contacts):
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC; UL, cUL
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- SPDT, DPDT; momentary or latching function
- Eight types of panel mount and through hole mounting options, including right angle, vertical and with bracket
- PCB Pin or solder termination options
- Multiple actuator color options

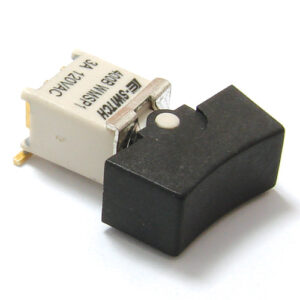

400B Series
- IP67 seal rating
- Electrical Ratings (silver or gold contacts):
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC; UL, cUL
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- SPDT; momentary or latching function
- Surface mount right angle (SMT) design
- Epoxy sealed terminals
