A right angle tactile switch performs functions that standard tact switches cannot. The right angle mounting feature allows the tactile switch to be mounted perpendicular to the circuit board, which is ideal for edge-mounted or space-constrained designs.

This orientation supports front-panel access in enclosures or control systems, making the switch easier to reach and operate. It also helps with efficient PCB layout and cable routing, especially in compact systems with a limited amount of vertical space. Examples include side-facing buttons on remote controls, smartwatches, fitness trackers, audio devices, laptops, control panels, key fobs, diagnostic tools and home appliances.

To view E-Switch’s complete selection of right angle products, explore the “Right Angle” feature section of our product catalog.

10 Best Right Angle Tactile Switch Options

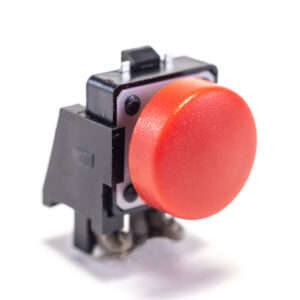

TL1100 Series: DATA SHEET | CONFIGURATOR

• Through hole right angle mounting design
• 3 actuator height choices: 3.6mm, 6.4mm square (cap option), 11.2mm
• 12mm x 12mm outline
• 160gf or 260gf operating force
• Silver or gold contact material

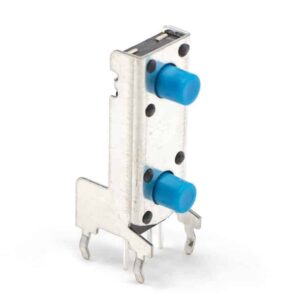

TL53 Series: DATA SHEET | CONFIGURATOR

• Through hole right angle mounting design
• Two independent switches in a single, stacked package
• 8 actuator height choices
• 8.40mm x 10.50mm outline
• 100gf, 160gf or 260gf operating force

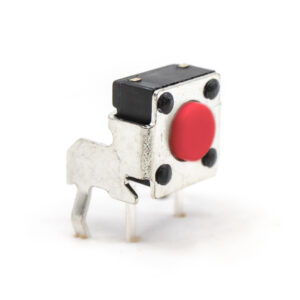

TL1105 Series: DATA SHEET | CONFIGURATOR

• Through hole right angle mounting design
• 10 actuator height choices (including cap options)
• 6.00mm x 6.00mm outline
• 100gf, 160gf or 250gf operating force
• Silver or gold contact material

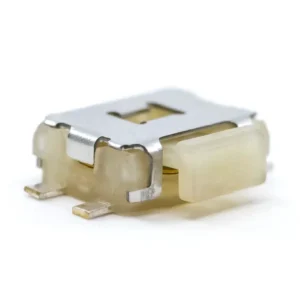

TL1014 Series: DATA SHEET | CONFIGURATOR

• Surface mount (SMT) right angle design
• 4.70mm x 3.50mm outline
• Mounting boss option
• 160gf or 220gf operating force
• Gull wing termination

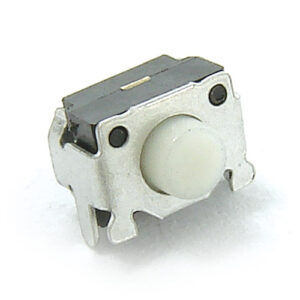

TL3340 Series: DATA SHEET | CONFIGURATOR

• Surface mount (SMT) right angle design
• 4.25mm x 3.30mm outline
• 130gf, 160gf or 260gf operating force
• 3.4mm (shock resistant silicon available) or 5.9mm actuator height
• Gull wing termination

TL6110 Series: DATA SHEET | CONFIGURATOR

• Through hole right angle mounting design
• 8.30mm x 5.80mm outline
• IP67 moisture and dust protection
• 130gf, 160gf, 300gf or 500gf operating force
• 4 actuator height options

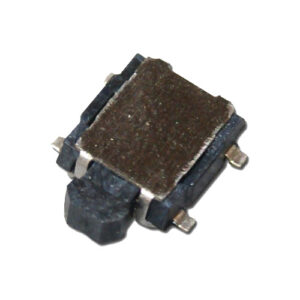

TL3901 Series: DATA SHEET | CONFIGURATOR

• Surface mount (SMT) right angle design
• Unique design allows PCB edge mounting
• 6.00mm x 5.40mm outline
• Tape and reel packaging (2,000 pieces per reel)
• -40°C to +85°C operating/storage temperature

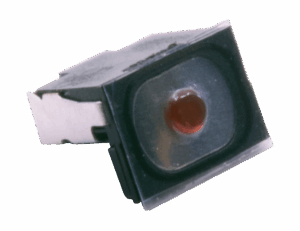

TL4110 Series: DATA SHEET | CONFIGURATOR

• Surface mount (SMT) right angle design
• Unique design allows for PCB edge mounting
• 2.00mm x 2.80mm outline
• 0.65mm actuator height
• 160gf operating force

TL6190 Series: DATA SHEET | CONFIGURATOR

• Through hole right angle mounting design
• 12.00mm x 11.50mm outline
• 160gf, 220gf or 320gf operating force
• Silver or gold contact material
• Process sealed

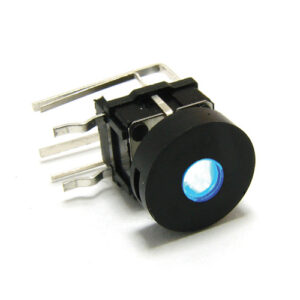

TL1260 Series: DATA SHEET | CONFIGURATOR

• Through hole right angle mounting design
• 7.00mm x 6.80mm outline
• LED illumination (red, green, yellow or blue)
• Round flat cap (black, green, red, yellow or gray)
• 160gf operating force
