If you’re looking for a surface-mount detector switch, E-Switch offers one of the broadest detect selections on the market. Many of these switches are designed as surface-mount devices (SMD) to be soldered directly onto a PCB using surface-mount technology (SMT), but E-Switch also offers through hole (THT) mounting, snap-in and chassis designs for panels, as well as reed type detector switches.
Below, you’ll find a variety of detector switches in different styles (vertical, horizontal, angled) and sizes (subminiature, ultra-miniature, standard), with various actuators (pin plunger, push-pull plunger, magnet, lever, angled toggle) and design benefits (sealed, long life, soft actuation, low profile). Selections include traditional detect, snap-acting, tactile, magnetic reed and door interlock styles to fit your application’s needs.
Additional benefits include low power operation (ranging from 1mA, 5VDC up to 16A), space-saving designs (as small as 3.5mm x 3.0mm with 2.53mm profile) and long life cycles (up to one million).
Detector Switch SMD
TD1146 Series Ultra-Miniature SMT Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- Contact Rating: 1mA @ 5VDC
- Ultra-miniature 4.8mm x 3.5mm size
- Low operating force of 50 grams max
- SPST circuit; momentary function
- Low profile of 3.8mm

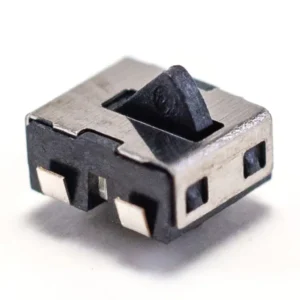

TD4700 Series Ultra-Miniature SMT Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- Contact Rating: 1mA @ 5VDC
- Ultra-miniature 3.5mm x 3.0mm size
- Low operating force of 50 grams max
- SPST-NO circuit
- Low profile of 2.53mm
TD1260 Series Ultra-Miniature SMT Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- Contact Rating: 1mA @ 5VDC
- Ultra-miniature 4.25mm x 4.0mm size
- Low operating force of 35 grams max with angled lever actuator
- SPST-NO or SPST-NC circuit; momentary function
- Low profile of 3.13mm

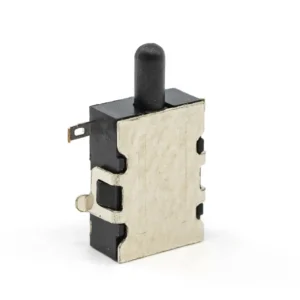

900 Series Subminiature SMT Right Angle Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- Contact Rating: 100mA @ 50VDC
- Right angle design
- SPST-NC or SPST-NO; momentary function
- Low operating force of 50 grams max
- Tape and reel packaging (1,900 pieces per reel)
Detector Switch Through Hole (THT) or Panel Mount

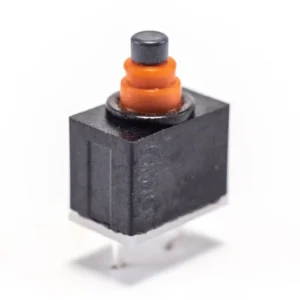

TD1150 Series Sealed Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- Contact Rating: 100mA, 12VDC
- IP67 rated dust and moisture seal
- SPST circuit; momentary function
- Through hole mounting design; PC pin termination
- 35gf nominal to electrical make (0.5mm travel); 100gf nominal to full stroke (2.5mm travel)

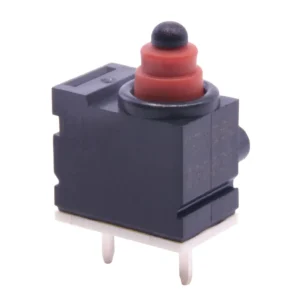

TD1250 Series Sealed, Long Life Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- IP67 rated dust and moisture seal
- Contact Rating: 1mA, 5VDC ~ 50mA, 16VDC
- SPST circuit; momentary function
- Round pin plunger, straight lever or leaf lever actuator
- PC pin, solder lug or wire leads termination

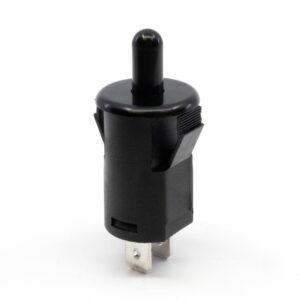

TD1350 Series Door Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- Rating: 12A 125/250VAC T105 (UL, cUL, ENEC)
- 14.50mm diameter panel cutout size
- SPST circuit; Off-(On) function
- Ingress Protection: IP40 rated
- 10mm actuator height with 9mm of travel
Detector Switch Magnetic, Reed Type
MR1000 Series Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- Contact Rating: 500mA, 10V (AC or DC)
- IP67 rated dust and moisture seal
- Two-piece design: magnet and reed switch (19mm or 25mm gap options)
- SPST-NO circuit; momentary function
- Two 18-inch 22AWG wire leads
Detector Switch Panel Snap-In

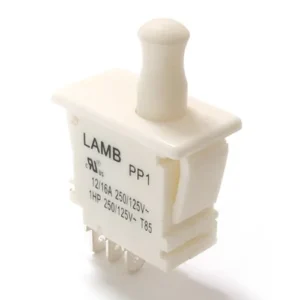

PP1 Series Push-Pull Pushbutton Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- 28.4mm x 13.5mm panel cutout; snap-in design
- 16A 125VAC; 12A 250VAC; 1HP 125/250VAC (UL listed)
- SPDT momentary; On-(On) or On-On-(On)
- Straight, push-pull or short actuator
- Acts as a door interlock or detector switch

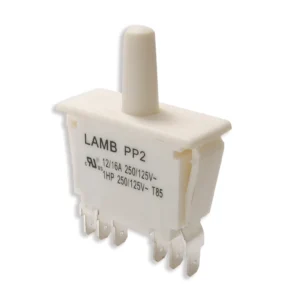

PP2 Series Push-Pull Pushbutton Detector Switch
VIEW PRODUCT PAGE | VIEW DATA SHEET
- 36.5mm x 13.5mm panel cutout; snap-in design
- 16A 125VAC; 12A 250VAC; 1HP 125/250VAC (UL listed)
- DPDT momentary; On-(On) or On-On-(On)
- Straight, push-pull or short actuator
- Acts as a door interlock or detector switch
You can browse E-Switch’s complete selection of detector switches by following this link. Don’t forget to sign-up for our monthly newsletter for new releases, product information and much more!
