Introducing the TL6059 Series — a fully sealed, through-hole mounted tactile switch with radial lead packaging. Watch the New Product Introduction video now, and continue below for more information, including the data sheet and purchasing options.
HIGHLIGHT FEATURES-

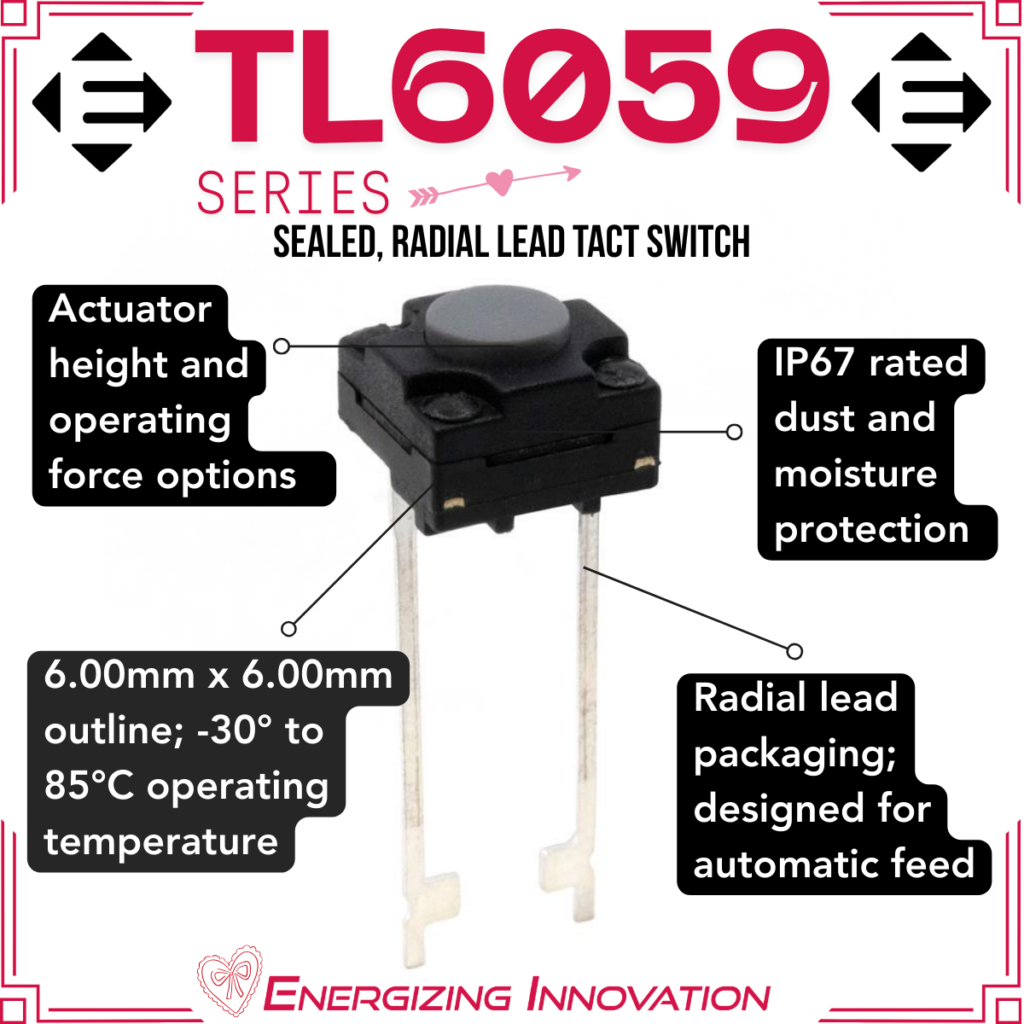

The TL6059 Series is an IP67 sealed, through-hole mounted tactile switch with radial lead packaging for automated, high-volume assembly. This highly dependable tact has a miniature 6.00mm x 6.00mm outline and two different actuator height dimensions to select from.
STANDARD FEATURES-
The TL6059 is a SPST tact switch with silver contacts, an electrical rating of 12VDC @ 50mA and a robust operating temperature range of -30 to +85°C. Three different operating forces are available (100gf, 160gf, 200gf) with a resulting electrical life ranging from 100,000 to 1,000,000 cycles.
SPECIFICATIONS INCLUDE-
- Contact Arrangement: SPST
- Contact Rating: 12VDC @ 50mA
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MΩ @ 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Operating Temperature: -30°C to +85°C
- Travel: 0.20mm ± 0.10mm
- Contact Material: Silver
- Moisture Protection: IP67
- Actuation Force: 100 ± 30gf (1,000,000 cycles); 160 ± 50gf (100,000 cycles); 200 ± 50gf (100,000 cycles)
View the TL6059 Series data sheet by following this link!
Configure your own TL6059 Series tact switch for purchase here.
