Introducing the TL3220 Series — an ultra-miniature, surface mount tactile switch with RGB illumination. Watch the New Product Introduction video now, and continue below for more information, including the data sheet and purchasing options.
HIGHLIGHT FEATURES-

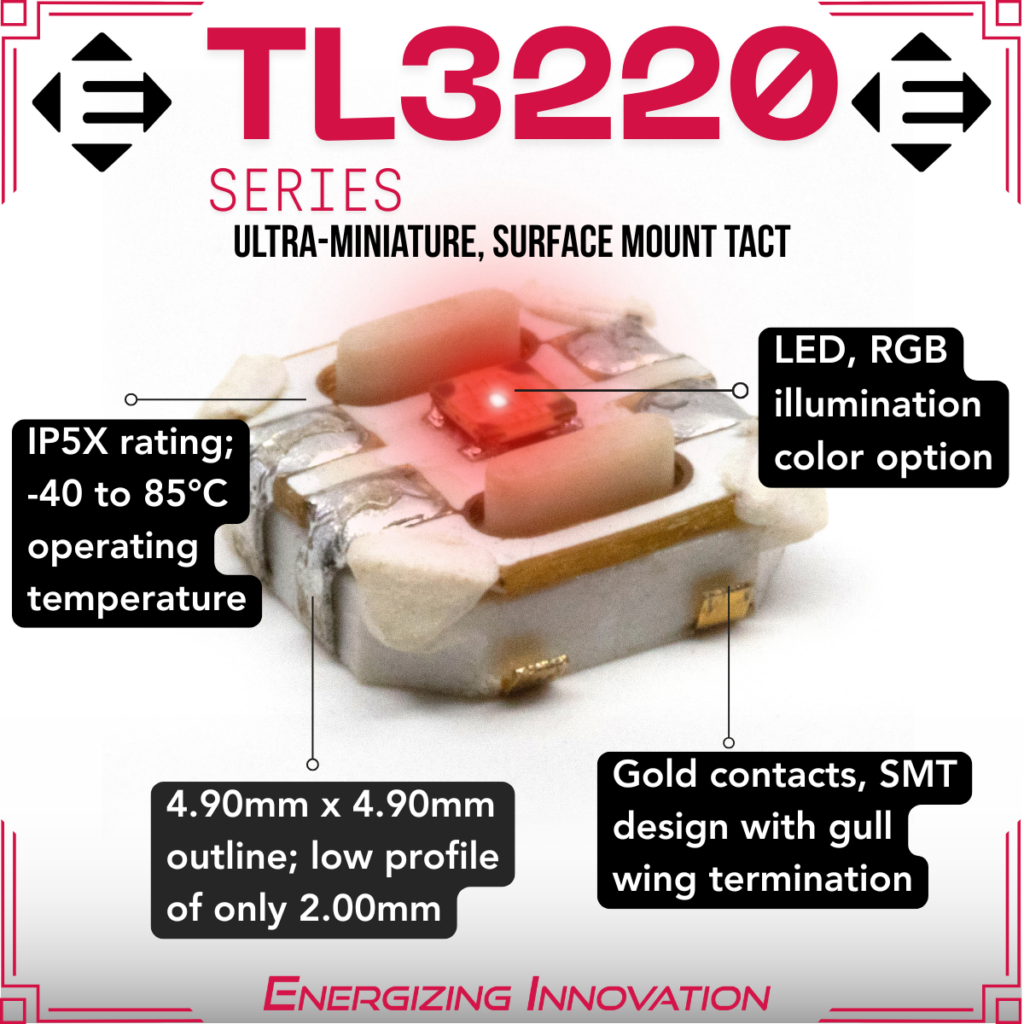

The TL3220 Series is an ultra-miniature (4.90mm x 4.90mm outline), surface-mount tactile switch with RGB illumination potential. The gold contacts deliver a 100,000-cycle life expectancy, and the switch can operate in temperatures ranging from -40 to 85°C while offering protection from dust and solid objects at an IP5X rating.
STANDARD FEATURES-
The TL3220 is a SPST switch with an electrical rating of 12VDC @ 50mA. This tact requires an operating force of 160gf and a short travel distance of only 0.20mm to actuation. Tape and reel packaging is offered for faster, high-volume assembly and savings on cost and space.
SPECIFICATIONS INCLUDE-
- Contact Arrangement: SPST
- Contact Rating Options: 12VDC @ 50mA
- Contact Resistance: 500mΩ Max.
- Insulation Resistance: 100MΩ @ 500VDC
- Dielectric Strength: 250VAC for 1 minute
- Electrical Life: 100,000 Cycles
- Mechanical Life: 100,000 Cycles
- Operating Temperature: -40°C to +85°C
- Travel: 0.20mm
- Contact Material: Gold Flash over Phosphor Bronze
- Moisture Protection: IP5X
- Actuation Force: 160 +/- 50gf
- Bounce: 5ms Max.
View the TL3220 Series data sheet by following this link!
Configure your own TL3220 Series tact switch for purchase here.
