SV Series Anti-Vandal Switch: Short Body Pushbutton
The SV Series is an anti-vandal pushbutton switch with a unique short body design built for applications with limited behind-panel space.
The series is available in three different panel cutout sizes: 19mm (SV4 Series), 22mm (SV7 Series) and 25mm (SV8 Series). The behind-panel depth of the SV Series is 19.2mm (3/4 inch) compared with standard anti-vandal pushbuttons, which typically range from 34mm to 41mm in depth.
All SV models offer termination styles that include solder lug, soldered wire leads (500mm long) or wire leads with our ECM Series connector.
The SV Series offers a SPST contact arrangement, an electrical rating of 2A at 36VDC, IP67 protection against dust/moisture and a stainless steel, black stainless or corrosion resistant (SUS316) finish.

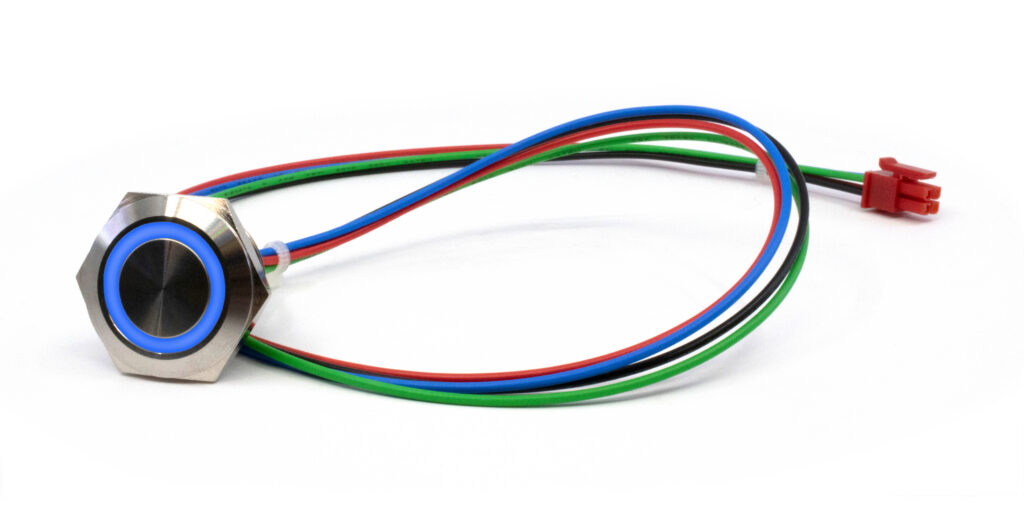

All three models offer illumination on a flat actuator with ring, ring/power symbol or laser etched custom graphic styles. Multiple LED color options (including bi-color) and illumination voltages are available.
Common applications include audio/visual equipment, security and medical devices, industrial controls, electrical housewares, public kiosks and transportation panels.
VIEW: SV4 DATA SHEET | SV7 DATA SHEET | SV8 DATA SHEET
Specifications include:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A, 12VDC
- Insulation Resistance: 1,000MΩ Min. at 500VDC
- Dielectric Strength: 2,000VAC for 1 minute
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Contact Material: Brass, Coin Silver, Gold Flash
- Moisture Protection: IP67
- Mechanical Impact Protection: IK10
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
Use our request form to contact us for more information!
