Designed to withstand harsh use, extreme temperatures and rugged environments, E-Switch offers the PV Series: an extensive range of vandal-resistant pushbutton switches with a variety of size, function, actuator style, termination, body finish and illumination options.
Most PV Series switches are sealed to an IP65 or IP67 rating for protection against dust and moisture, offer RGB and bi-color illumination, one or two-pole functions and the ability to order the switches with wire leads (300mm long) or with a detachable socket (wire leads optional) to quickly and easily connect power behind the panel. Both options eliminate the need to second source your wire purchasing and assembly, reducing in-house labor while saving you time and money.
While the anti-vandal features make it a highly robust offering, the PV Series aesthetically pleasing design elements (including stainless steel, anodized and nickel or gold-plated finishes) and overall dependability has contributed to their placement across markets and applications. Common industries include transportation, security, appliance, audio/visual, industrial, construction and home maintenance.
Anti-Vandal Pushbutton Switches: 12mm Panel Cutout

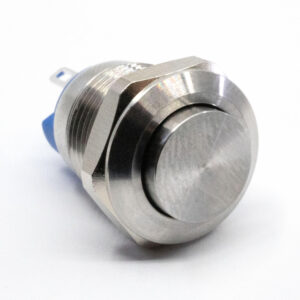

PV0 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 36VDC
- SPST; 1,000,000-cycle mechanical life
- IP67 rated; -40°C to +85°C operating temperature
- Ring, dot or power symbol illumination available
- Many LED colors, including RGB and bi-color
- Solder lug or wire leads (300mm) termination
- High or flat actuator; stainless steel or black anodized finish
PV5 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 36VDC
- SPST; 1,000,000-cycle mechanical life
- IP65 rated; -40°C to +85°C operating temperature
- Solder lug, screw or wire leads (300mm) termination
- Raised or domed actuator; stainless steel, black anodized or nickel finish
- Many different actuator color and finish options
Anti-Vandal Pushbutton Switches: 16mm Cutout

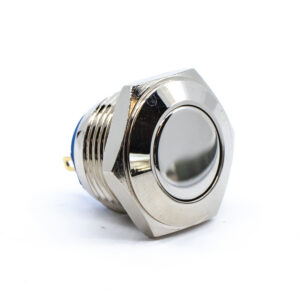

PV2 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 48VDC
- SPST; 1,000,000-cycle mechanical life
- IP65 rated; -40°C to +85°C operating temperature
- Solder lug, screw or wire leads (300mm) termination
- Flat, high or domed actuator; gold, nickel, black anodized, polished or brushed stainless
- Silver or gold contacts; power symbol marking available

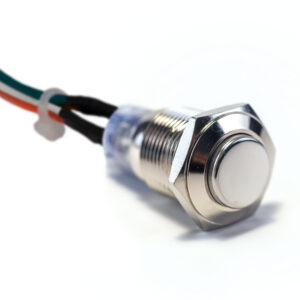

PV3 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 48VDC
- SPDT or DPDT; 200,000-cycle mechanical life
- IP67 or IP40; -40°C to +85°C operating temperature
- Solder lug or wire leads (300mm)
- Flat, high or guarded concave actuator; black anodized, nickel, brushed or polished stainless
- Dot or ring illumination available
- Many LED color and voltage options

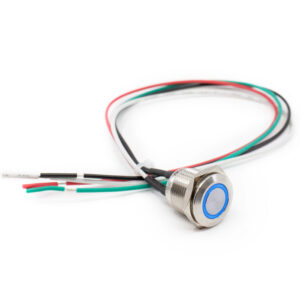

PV6 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 48VDC
- SPST; 1,000,000-cycle mechanical life
- IP65 rated; -40°C to +85°C operating temperature
- Solder lug or wire leads (300mm)
- Flat or high actuator; nickel plated, stainless steel or black anodized
- Dot or ring illumination available; laser etched power symbol option
- Many LED color choices
Anti-Vandal Pushbutton Switches: 19mm Cutout

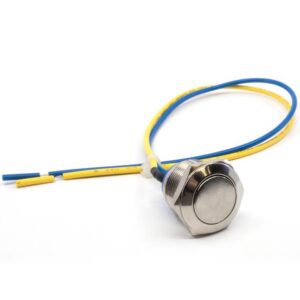

PV1 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 36VDC
- SPST; 1,000,000-cycle mechanical life
- IP65 rated; -40°C to +85°C operating temperature
- Solder lug, screw or wire leads (300mm) termination
- Gold, nickel, black anodized, polished or brushed stainless finish
- Non-illuminated; optional laser etched power symbol

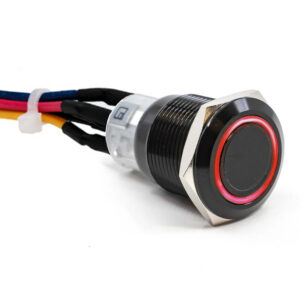

PV4 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 24VDC
- SPDT or DPDT; momentary or latching; 50,000-cycle electrical life
- IP67 rated; -40°C to +85°C operating temperature
- Solder lug, screw or wire leads (300mm) termination
- Stainless steel or black anodized finish
- Dot, ring or non-illuminated with laser etched power symbol
- RGB LED option
Anti-Vandal Pushbutton Switches: 22mm Cutout
PV7 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 48VDC
- DPST-NO/NC circuit; latching or momentary function
- Solder lug or wire leads (300mm) termination
- Illuminated dot, ring, power symbol or non-illuminated
- LED color and voltage options, including bi-color and RGB
- IP65 rated protection; -35°C to +85°C
Anti-Vandal Pushbutton Switches: 25mm Cutout

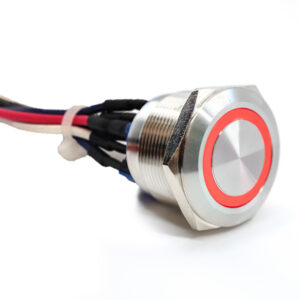

PV8 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 48VDC
- DPST-NO/NC or 4PST-2NO/2NC circuit; latching or momentary
- Solder lug or wire leads (300mm) termination
- Illuminated ring, dot, power symbol or non-illuminated
- Many LED voltage and color options, including bi-color and RGB
- IP65 rated seal protection; -35°C to +85°C operating temperature
Anti-Vandal Pushbutton Switches: 28mm Cutout

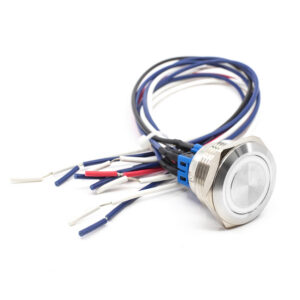

PV9 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 48VDC
- DPST-NO/NC or 4PST-2NO/2NC circuit; latching or momentary function
- Solder or wire leads (300mm) termination
- Illuminated ring, dot or non-illuminated
- Many LED color and voltage options, including bi-color
- IP65 rated seal protection; -35°C to +85°C operating temperature
Anti-Vandal Pushbutton Switches: 40mm Cutout

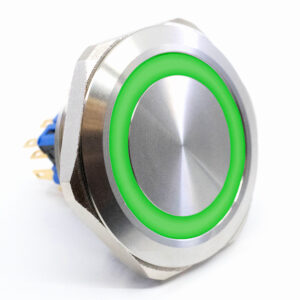

PV10 Series: VIEW DATA SHEET | CONFIGURATOR
- Electrical Rating: 2A, 48VDC
- DPST-NO/NC or 4PST-2NO/2NC circuit; latching or momentary
- Solder lug or wire leads (300mm) termination
- Illuminated ring, dot or non-illuminated
- Many LED color and voltage options, including bi-color
- Stainless steel or black anodized finish
View E-Switch’s entire selection of anti-vandal switches right here!
