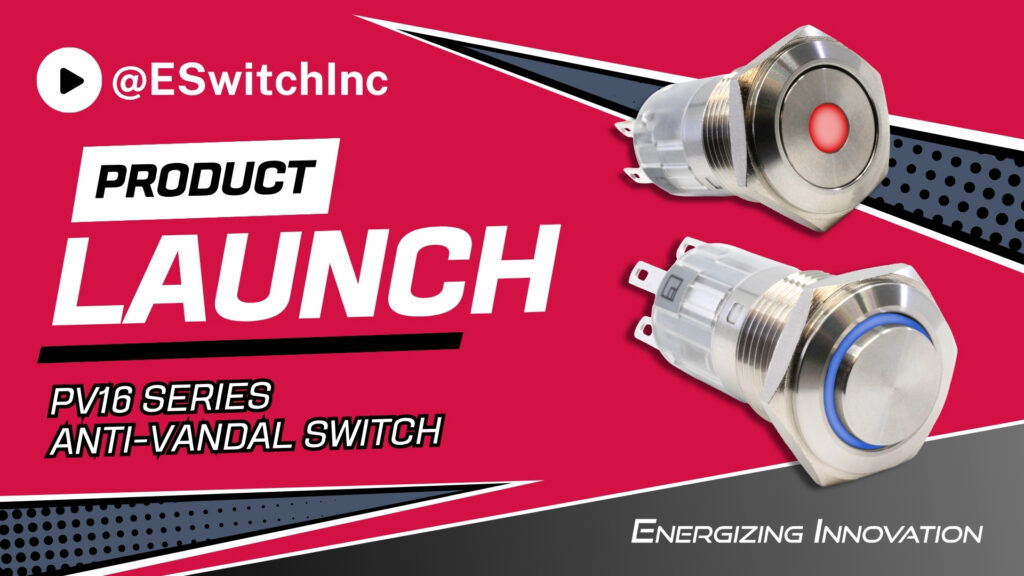

Introducing the PV16 Series: a durable anti-vandal switch with illumination options, ideal for the audio visual and industrial markets.
HIGHLIGHT FEATURES –
The PV16 Series is an IP67-rated anti-vandal switch available with a stainless steel, black anodized, or nickel body and actuator, robust operating temperature range of -40°C to +85°C, and an electrical life of 50,000 cycles. LED illumination options include 6 colors (white, red, orange, green, blue, yellow) as well as 6 bi-color options. Lens styles include dot, ring, or ring/power symbol.
STANDARD FEATURES –
The PV16 has a recommended panel cutout size of 16mm. This anti-vandal can be configured with a SPST or SPDT circuit, momentary or latching functions, and silver or gold contacts. Termination styles include solder, wire leads, or wire w/ connector.
SPECIFICATIONS INCLUDE –
- Contact Arrangement: SPDT, DPDT
- Contact Rating: 5A 220VAC, 2A 24VDC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100mΩ Min.
- Dielectric Strength: 1500VAC Min for 1 Minute
- Electrical Life: 50,000 Cycles
- Mechanical Life: 1,000,000 Cycles (Mom), 500,000 Cycles (Latching)
- Travel: 3.1mm [0.12 in]
- Operating Temperature: -40°C to +85°C
- Actuation Force: 1.5N (1NO1NC) 3N (2NO2NC)
- Dust/Moisture Protection: IP67
- Contact Material: Silver or Gold
View the PV16 Series data sheet by following this link!
Configure your own PV16 Series anti-vandal switch for purchase here.
