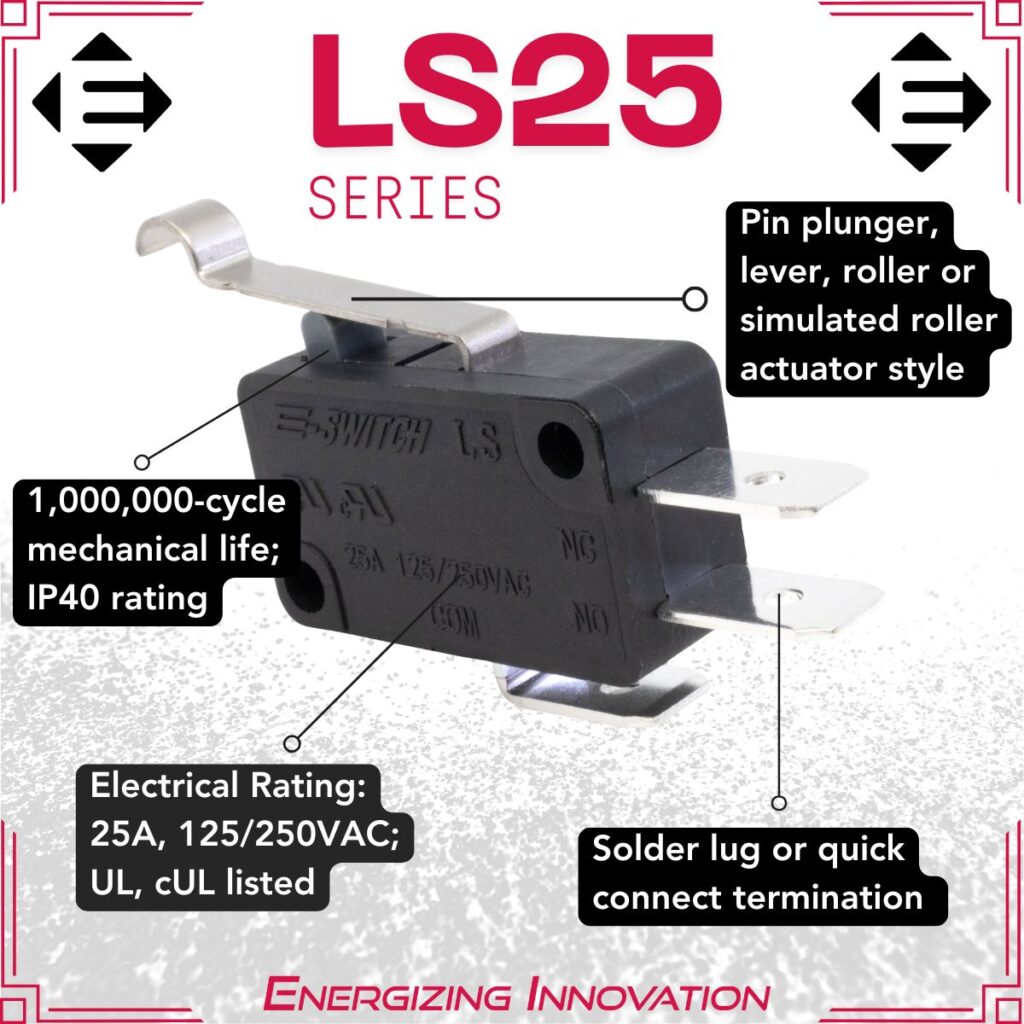

Introducing the LS25 Series — a high current, UL listed snap action switch with a long life cycle and multiple actuator options, including pin plunger, lever, simulated roller or roller. Watch the New Product Introduction video now, and continue below for more information, including the data sheet and purchasing options.
HIGHLIGHT FEATURES-
The LS25 Series is a high current snap action switch with a long life cycle. The switch is UL listed with an electrical rating of 25A, 125/250VAC. It provides multiple actuator options, including pin plunger, lever, simulated roller or roller, and five different operating forces, ranging from 90gf up to 400gf.
STANDARD FEATURES-
The LS25 has a SPDT circuit with an On-(Off) momentary function. The switch has a robust operating temperature range of -25°C to 85°C, a long mechanical life of 1,000,000 cycles and protection against dust and solid objects at an IP40 rating. Termination options include solder lug or quick connect.
SPECIFICATIONS INCLUDE-
- Contact Arrangement: SPDT
- Contact Rating Options: 125/250VAC @ 25A
- Contact Resistance: 100mΩ MAX. (Initial)
- Insulation Resistance: 100MΩ MIN. @ 500VDC
- Dielectric Strength: 500VAC for 1 minute
- Electrical Life: 10,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Operating Temperature: -25°C to +85°C
- Operating Force (OF): 400gf MAX.
- IP Rating: IP40
- Free Position (FP): IP40
- Over-travel (OT): 0.80mm
- Operating Position (OP): 14.8mm ~ 22.8mm
- Switch Dimensions: 27.8mm x 10.3mm x 15.9mm
