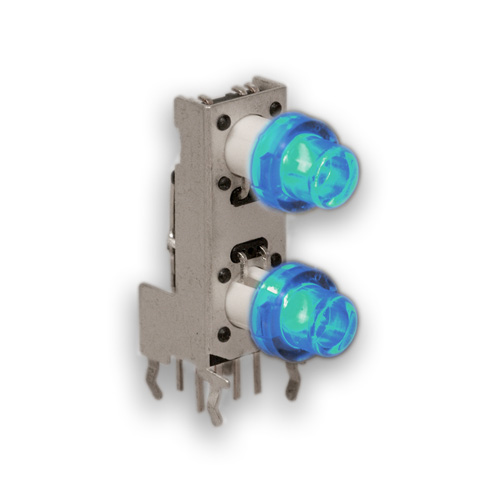

TL3253 Series Dual Illuminated Through Hole Right Angle Tactile Switch
TL3253 Series Dual Illuminated Through Hole Right Angle Tactile Switch
- Through hole right angle mounting design
- 8.4mm x 10.55mm
- Single or dual LED illuminated, with many LED color options
- Dual actuation
- Additional cap options
- 22.6mm height
- 160gf operating force
- 500,000 cycle life
- Silver contact material
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
TL3253 Series Dual Illuminated Through Hole Right Angle Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- LIFE EXPECTANCY: 500,000 cycles
- CONTACT RESISTANCE: 100mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min at 100VDC
- DIELECTRIC STRENGTH: 250V AC for 1 min.
- OPERATING TEMPERATURE: -20°C to 70°C
- STORAGE TEMPERATURE: -30°C to 80°C
- OPERATING FORCE: 160gf
- TRAVEL: 0.25mm
- CONTACT ARRANGEMENT: SPST, Normally Open
