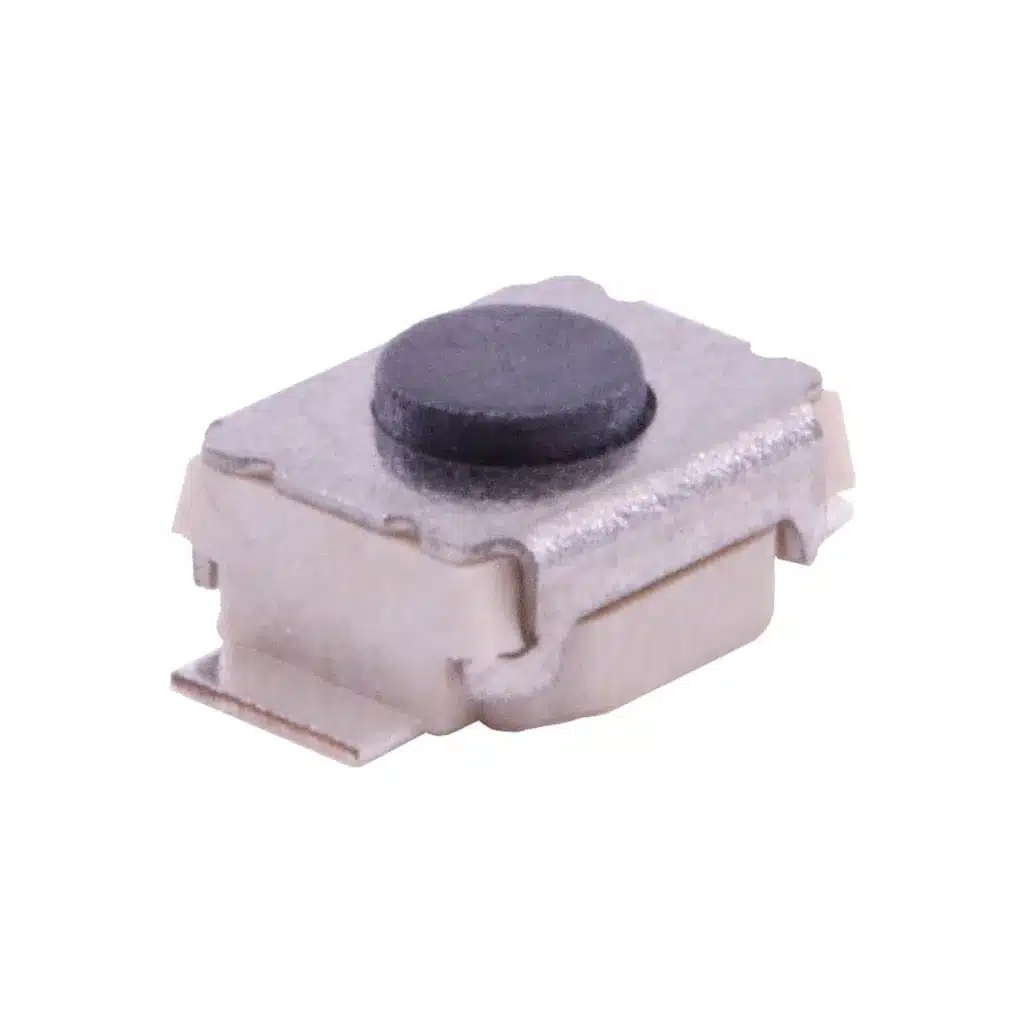

TL1017 Series Long Life, Surface Mount Tact Switch

TL1017 Series Long Life, Surface Mount Tact Switch

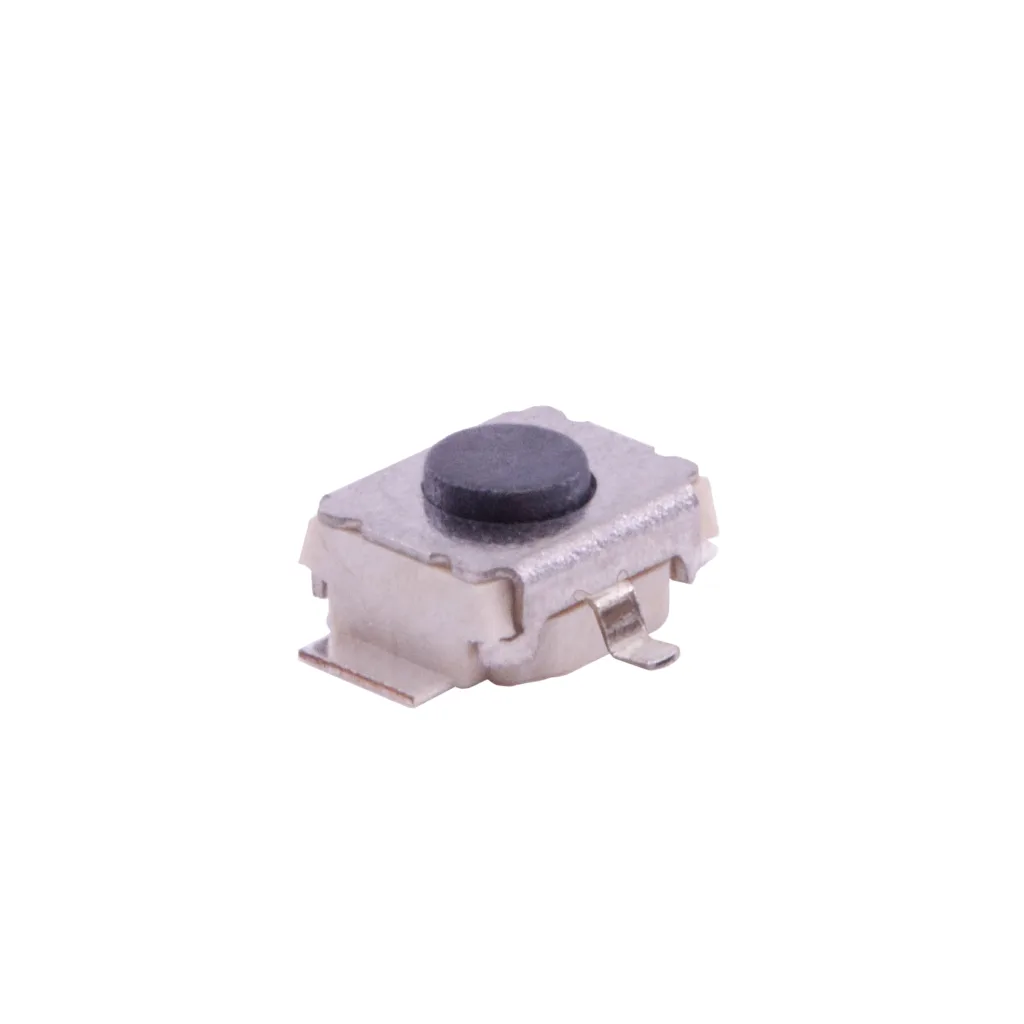

The TL1017 Series is a surface mount tact switch with a long life of up to 200,000 cycles, multiple actuation force options, a mounting boss option, and ground terminal option. Actuator options include a 160gf, black actuator and a 260gf, red actuator. The 160gf actuator has a life expectancy of 200,000 cycles, and the 260gf option has a life expectancy of 100,000 cycles. The switch is delivered with silver contacts and gull wing termination in tape and reel packaging for automated installation. The TL1017 Series SMT tactile switches are rated for up to 50ma, 12VDC and operate in temperatures ranging from -20° to 70° Celsius. They can be stored in temperatures ranging from -30° to 80° Celsius. These surface mount switches feature Single Pole, Single Throw (SPST) circuits with Off-(On) functionality. Applications for the TL1017 series SMT tact switch include but are not limited to:

  • Audio/visual
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Medical equipment
  • Telecommunications


  • Surface mount design
  • Up to 200,000 cycle life expectancy
  • Multiple actuation force options
  • Mounting boss option
  • Ground terminal option
  • Tape and Reel packaging

TL1017 Series Long Life, Surface Mount Tact Switch

decoration Tl1017



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:


* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

Detail Specifications

ELECTRICAL RATING: 50mA, 12VDC CONTACT RESISTANCE: 100mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ Min. at 500VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING LIFE: 200,000 cycles for 160gf; 100,000 cycles for 260gf OPERATING TEMPERATURE: -20°C to 70°C STORAGE TEMPERATURE: -30°C to 80°C TRAVEL: 0.15mm ± 0.1mm OPERATING FORCE: 160gf ± 50gf; 260gf ±50gf FUNCTION: SPST, Off-(On) PACKAGING: Tape and Reel, 3,000 pieces/reel
