Full illumination or non-illuminated options
Six actuator marking options
LED or Neon bulb illumination color and voltage options
0°C to 65°C operating temperature
" />

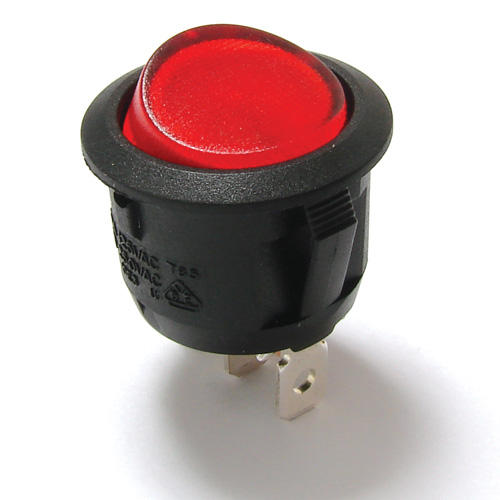

RR3112 Series Round, Illuminated, Power Rocker Switch
RR3112 Series Round, Illuminated, Power Rocker Switch
- 20.2mm panel cutout
- 16A 125VAC, 10A 250VAC; UL, cUL
- SPST or SPDT; momentary or latching function
- Panel mount snap-in design
- Quick connect - 0.187" termination
- Full illumination or non-illuminated options
- Six actuator marking options
- LED or Neon bulb illumination color and voltage options
- 0°C to 65°C operating temperature
RR3112 Series Round, Illuminated, Power Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 16A @ 125VAC; 10A @ 250VAC
- MECHANICAL LIFE: 20,000 Cycles
- ELECTRICAL LIFE: 6,000 Cycles
- CONTACT RESISTANCE: 50MΩ (Initial)
- INSULATION RESISTANCE: 100mΩ @ 500VDC
- DIELECTRIC STRENGTH: 1,500V Min. for 1 Minute
- OPERATING/STORAGE TEMPERATURE: 0°C to 65°C
