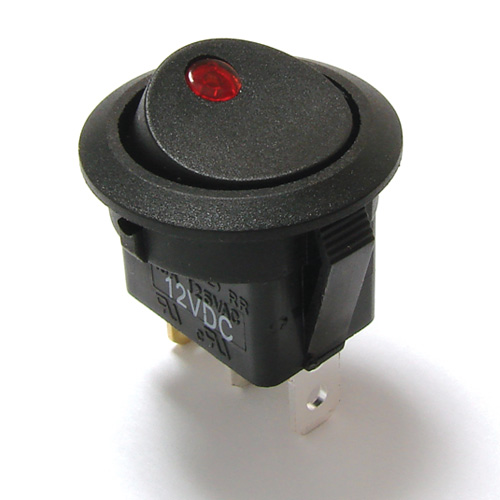

RR1 Series Round, Illuminated Power Rocker Switch with Cap

RR1 Series Round, Illuminated Power Rocker Switch with Cap

The RR1 Series is an aesthetically designed illuminated power rocker switch with a round body meant for a panel cutout sized 20mm in diameter. It is a single-pole power rocker switch with many functions and is sealed with a cap to protect from the elements at an IP54 ingress protection rating. The RR1 Series round power rocker switch also comes with multiple illumination options: dot, full, or signal light. The actuator on this LED rocker switch is curved, and this is a high current rocker switch, with electrical ratings of 16A, 125VAC and 1/3 HP. These custom rocker switches operate in temperatures ranging from -20 to 105°C and up to 125°C. Applications for this illuminated power rocker switch include:

  • Industrial
  • Audio/visual
  • Lighting ballast

FEATURES

  • Up to 16A, 125VAC, 1/3HP electrical rating
  • IP54 protection from dust and moisture with cap
  • Full, dot, and signal light illumination options

RR1 Series Round, Illuminated Power Rocker Switch with Cap

decoration Rr1 Wire

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Rr1 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Option C: 16A @ 125VAC [UL, cUL]; 10A @ 250VAC [UL, cUL]; 1/3HP @ 125/250VAC [UL, cUL]; 10(4)A @ 250V~1E4, T125/55 [ENEC]; 10(2)A @ 250V~5E4, T85/55 [ENEC]; Option 3: 10A @ 125VAC [UL, cUL]; 6(2)A @ 250V~1E4, T125/55 [ENEC] OPERATING/STORAGE TEMPERATURE: -20°C to 105°C [UL, cUL]; -20°C to 125°C [ENEC] ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 35mΩ Max. at 50VAC INSULATION RESISTANCE: 100MΩ Min. at 500VAC DIELECTRIC STRENGTH: 1,500VAC for 1 Minute
