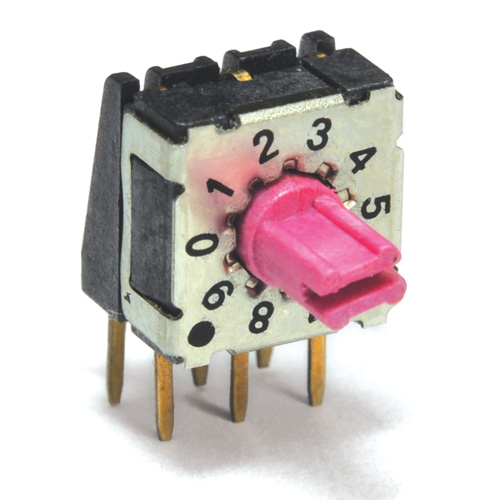

RDM Series Ultra Slim Rotary DIP Switch

RDM Series Ultra Slim Rotary DIP Switch

RDM Series rotary DIP switches offer IP67 protection from dust and moisture. Perfect for product applications that may have exposure to the elements, this small rotary DIP switch comes in an ultra slim package size for high density mounting.

This RDM Series rotary DIP switch comes with gold contacts and either 10 or 16 actuator positions. There are three actuator types, with a flush actuator or extended actuators 4.5 and 4.2mm long. With right angle or vertical termination, you have surface mount or PC board pin design options. This DIP switch is durable, with a life expectancy of 25,000 steps, and it operates in temperatures ranging from -60 to 125ºC.

This ultra slim rotary DIP switch fits many applications, including but not limited to:

  • Audio/visual
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Telecommunication
  • Medical equipment

FEATURES

  • Offers IP67 rated protection from dust and moisture
  • 10 or 16 positions
  • Right angle or vertical mount
  • Ultra slim size

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Rdm Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: Switch: 42VDC, 100mA; Carry: 42VDC, 400mA LIFE EXPECTANCY: 25,000 steps CONTACT RESISTANCE: 80mΩ Max. INSULATION RESISTANCE: 100MΩ Min. at 250VDC DIELECTRIC STRENGTH: 250VAC OPERATING TEMPERATURE: -60ºC to 125ºC ACTUATION FORCE: 250gf gf max TRAVEL: dependent upon individual switch positions
