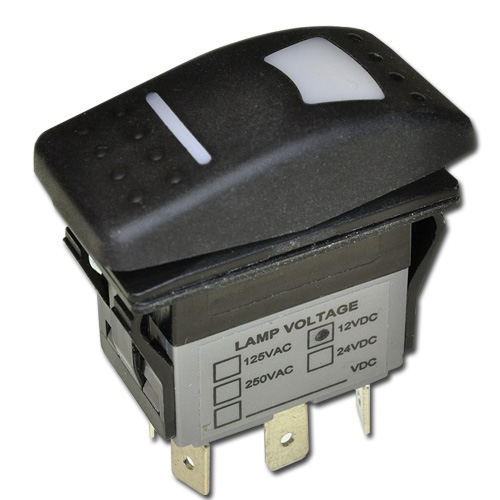

R7 Series Sealed, Illuminated, Power Rocker Switch
R7 Series Sealed, Illuminated, Power Rocker Switch
- IP67 rated; UL power rated
- 37mm x 21.2mm panel cutout size
- Electrical ratings:
- 20(8)A @ 125/250VAC, 50/60 Hz, µT55
- 16A @ 6-30VDC, 50/60 Hz, µT55
- 20(8)A @ 125/250VAC, 50/60 Hz, µT85/T55
- 16A @ 6-30VDC, 50/60 Hz, µT85/T55
- Single or double pole circuits with up to three actuator positions
- Solder, quick connect - 0.250", or screw termination options
- Many actuator style options
- Custom actuator marking available
- LED illumination options including dual LED
- Many illumination voltage options
- 0°C to 55°C operating temperature
- Ergonomic design for harsh environments
- PN's can be made for JUST the switch body, JUST the actuator, or BOTH
R7 Series Sealed, Illuminated, Power Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 20(8)A @ 125/250VAC, 50/60 Hz, µT55; 16A @ 6-30VDC, 50/60 Hz, µT55; 20(8)A @ 125/250VAC, 50/60 Hz, µT85/T55; 16A @ 6-30VDC, 50/60 Hz, µT85/T55
- ELECTRICAL LIFE: 10,000 Cycles per UL61058
- CONTACT RESISTANCE: 20mΩ Max. initial
- INSULATION RESISTANCE: 100 MΩ Min. @ 500VDC
- DIELECTRIC STRENGTH: 1,500VAC for 1 minute
- OPERATING TEMPERATURE: 0°C to 55°C
- STORAGE TEMPERATURE: -20°C to 85°C
- AGENCY APPROVALS: cURus
- CONTACT ARRANGEMENT: SP or DP up to 3 positions
- DUST/MOISTURE PROTECTION: IP67 to front panel
- PANEL THICKNESS: 1.5 - 4.5mm
