Multiple housing and actuator color options
Non-illuminated
Three actuator marking options
-20°C to 65°C operating temperature
" />

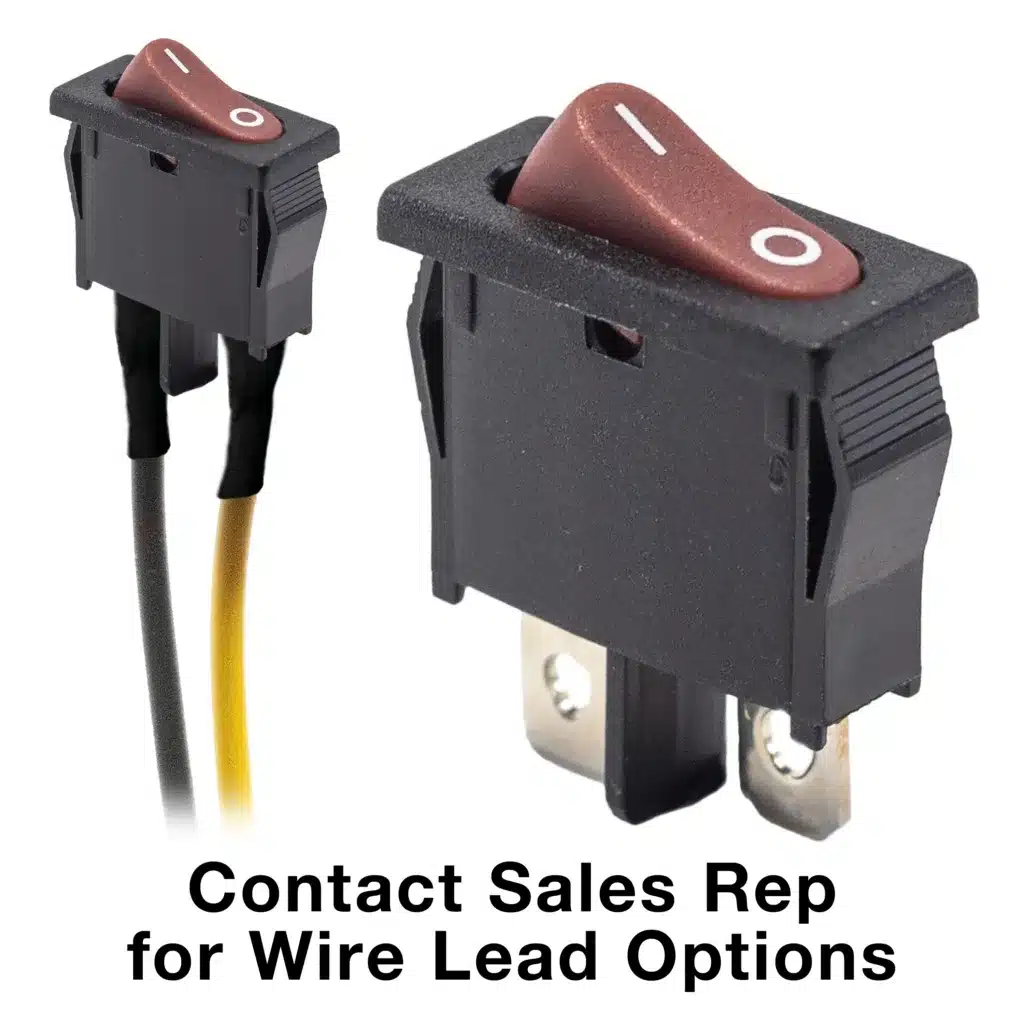

R6 Series Slim, Power Rocker Switch
R6 Series Slim, Power Rocker Switch
- 19.2mm x 6.65mm panel cutout
- 10A, 125VAC; 6A, 250VAC; UL, cUL; 4A, 250VAC; VDE
- SPST, momentary or latching function
- Panel mount snap-in design
- Quick connect - 0.187" termination
- Multiple housing and actuator color options
- Non-illuminated
- Three actuator marking options
- -20°C to 65°C operating temperature
R6 Series Slim, Power Rocker Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 10A @ 125VAC [UL, cUL]; 6A @ 250VAC [UL, cUL]; 4A @ 250VAC [VDE]
- MECHANICAL LIFE: 30,000 Cycles
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: <20mΩ (Initial)
- INSULATION RESISTANCE: >1,000MΩ at 500VDC
- DIELECTRIC STRENGTH: >1,500VAC for 1 Minute (Initial)
- OPERATING TEMPERATURE: -20°C to 65°C
- STORAGE TEMPERATURE: -30°C to 80°C
- PANEL THICKNESS: 0.75 - 3.00mm
