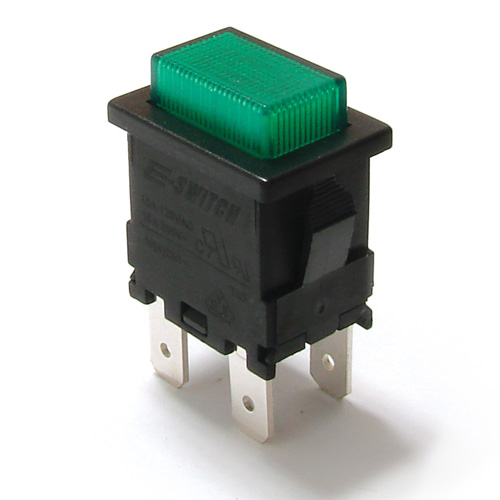

PB1973 Series Illuminated, Snap-in Pushbutton Switch

PB1973 Series Illuminated, Snap-in Pushbutton Switch

The PB1973 Series illuminated, snap-in pushbutton switch is UL and VDE certified, and offers many actuator colors and multiple options in circuit and lamp voltage for neon or incandescent lamps. The PB1973 Series pushbutton switch has a high power rating of up to 15A and is meant for a panel mount cutout of the popular 13mm x 19.2mm size. Applications for this illuminated, snap-in pushbutton switch include:

  • Telecommunications
  • Performance audio
  • External hard drives and modems
  • Networking
  • Computers
  • Servers
  • Instrumentation

FEATURES

  • 15A, 250VAC electrical rating with UL certification; 10A, 250VAC VDE certified
  • 13mm x 19.2mm panel cutout
  • Full illumination options and multiple actuator colors
  • SPST or DPST circuits; maintained (latching) or momentary functions

PB1973 Series Illuminated, Snap-in Pushbutton Switch

decoration Pb1973 Wire

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pb1973 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

PB1973BBLKBLKEF0

Detail Specifications

ELECTRICAL RATING: 15A @ 250VAC [UL], 10A @ 250VAC [VDE] MECHANICAL LIFE: ≥30,000 Cycles ELECTRICAL LIFE: ≥10,000 Cycles CONTACT RESISTANCE: <20mΩ INSULATION RESISTANCE: 1,000MΩ Min. DIELECTRIC STRENGTH: >1,500V OPERATING/STORAGE TEMPERATURE: -10°C to 55°C
