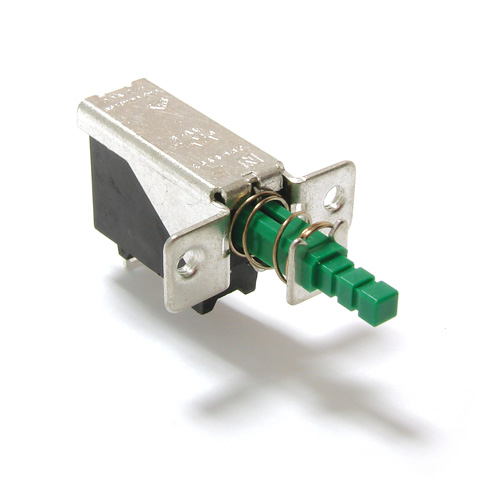

P197 Series Power Pushbutton Switch

P197 Series Power Pushbutton Switch

The P197 Series power pushbutton switches are available latching and momentary and offer both solder lug and PC pin terminations. These power pushbutton switches work in applications such as telecommunications, networking, computers, performance audio, instrumentation, and external hard drive and modems. Certifications RoHS Logo cURus Logo VDE Logo

FEATURES

  • 10A, 125VAC electrical rating
  • Panel and PC board mounting options
  • 1 or 2 poles; momentary and maintained (latching) functions

P197 Series

P197 Series Power Pushbutton Switch

decoration P197 Series

Industry Utilization:

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

P197 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Links

Most Common Configurations


Detail Specifications

SPECIFICATIONS CONTACT RATING: 10A 125VAC 5A 250VAC TV-5 125VAC In Rush 80A 250VAC ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 100mΩ Max., Typical; Initial at 2-4VDC INSULATION RESISTANCE: 1000MΩ Min. DIELECTRIC STRENGTH: >1,500V for 1 Minute >3,000V Between Poles OPERATING FORCE: 300gf ± 100gf OPERATING TEMPERATURE: -20°C to 85°C MATERIALS HOUSING: 6/6 Nylon ACTUATOR: Acetal BRACKET: Tin Plated Steel CONTACTS: Silver Plated Copper Alloy TERMINALS: Silver Plated Copper Alloy
