KAG Series DIP Switch

KAG Series DIP Switch

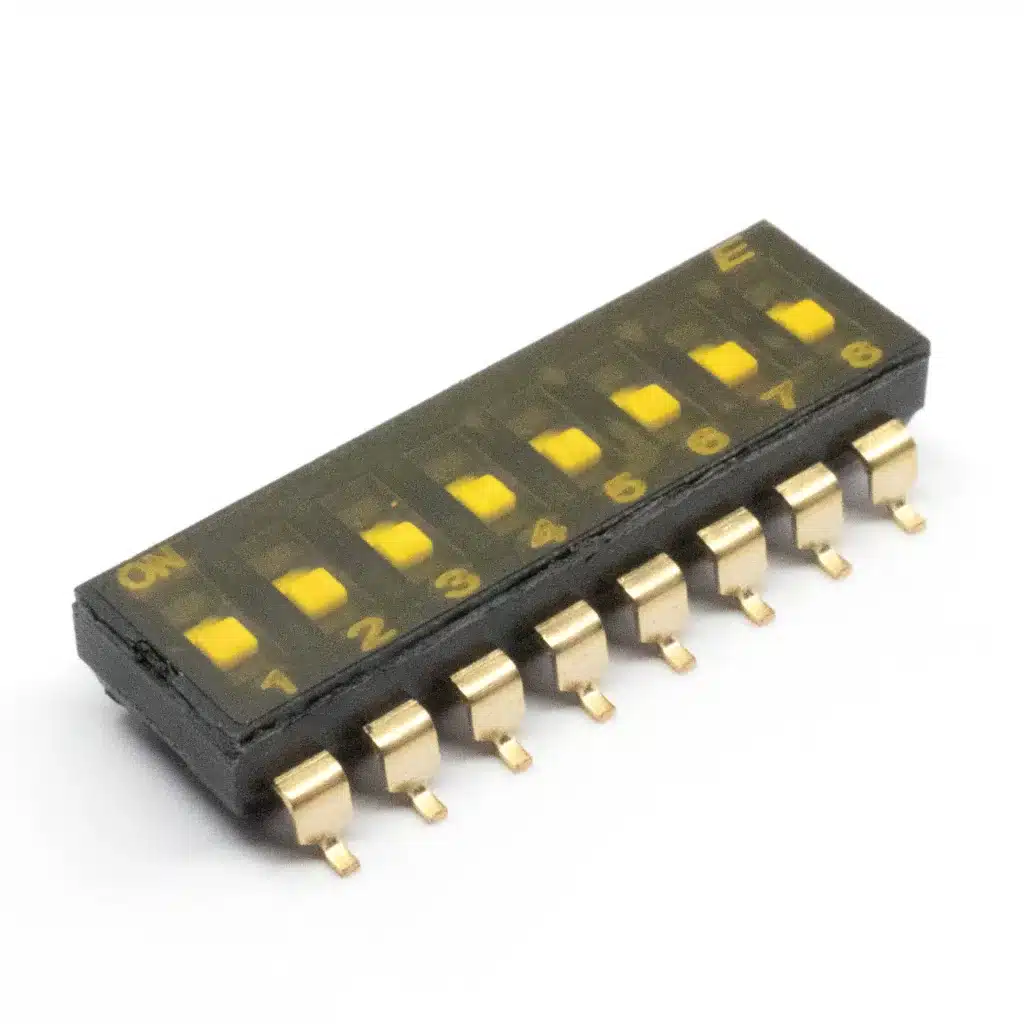

The KAG Series DIP switch, designed for high reliability and versatility, features a low profile, gold contacts and allows for up to 12 positions. The switch also has a top tape seal option with a recessed actuator. Switches are supplied with all poles in the "OFF" position. The KAG Series DIP switch has a Gullwing (SMT) termination option, and Tube or Tape & Reel packaging options. The contact arrangement is SPDT in each position, and each circuit has a life expectancy of 1,000 cycles. The electrical rating is 100mA @ 50VDC Non-Switching and 25mA @ 24VDC Switching. With its electrical rating, life expectancy and overall dependability, this series is ideal for the following markets:

  • Audio/Visual
  • Computer Peripherals
  • Consumer Electronics
  • Instrumentation
  • Telecommunication
  • Medical Equipment

FEATURES

  • Gullwing (SMT) termination option
  • Tube or Tape & Reel packaging options
  • Low profile
  • 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 or 12 positions
  • Gold contacts
  • Switches are supplied with all poles in "OFF" position


CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Microsoftteams Image (4)

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

Electrical Rating: 100mA @ 50VDC Non-Switching; 25mA @ 24VDC Switching

Life Expectancy: 1,000 Cycles each circuit

Contact Resistance: 50mΩ Max.

Insulation Resistance: 100MΩ Min. at 500VDC

Dielectric Strength: 500VAC for 1 min.

Operating Temperature: -40°C to 105°C

Storage Temperature: -40°C to 105°C

Travel: 0.9mm in each direction

Contact Arrangement: SPDT each position
