    ECM3022 Series Free Hanging Plug Housing

    ECM3022 Series Free Hanging Plug Housing

    • Free hanging 3mm spacing
    • Wire-to-wire receptacle-to-plug system
    • Compatible with ECM3025 Series
    • Low profile design
    • Two, four six or 10 poles
    • ECM5558M2822C - pin terminals

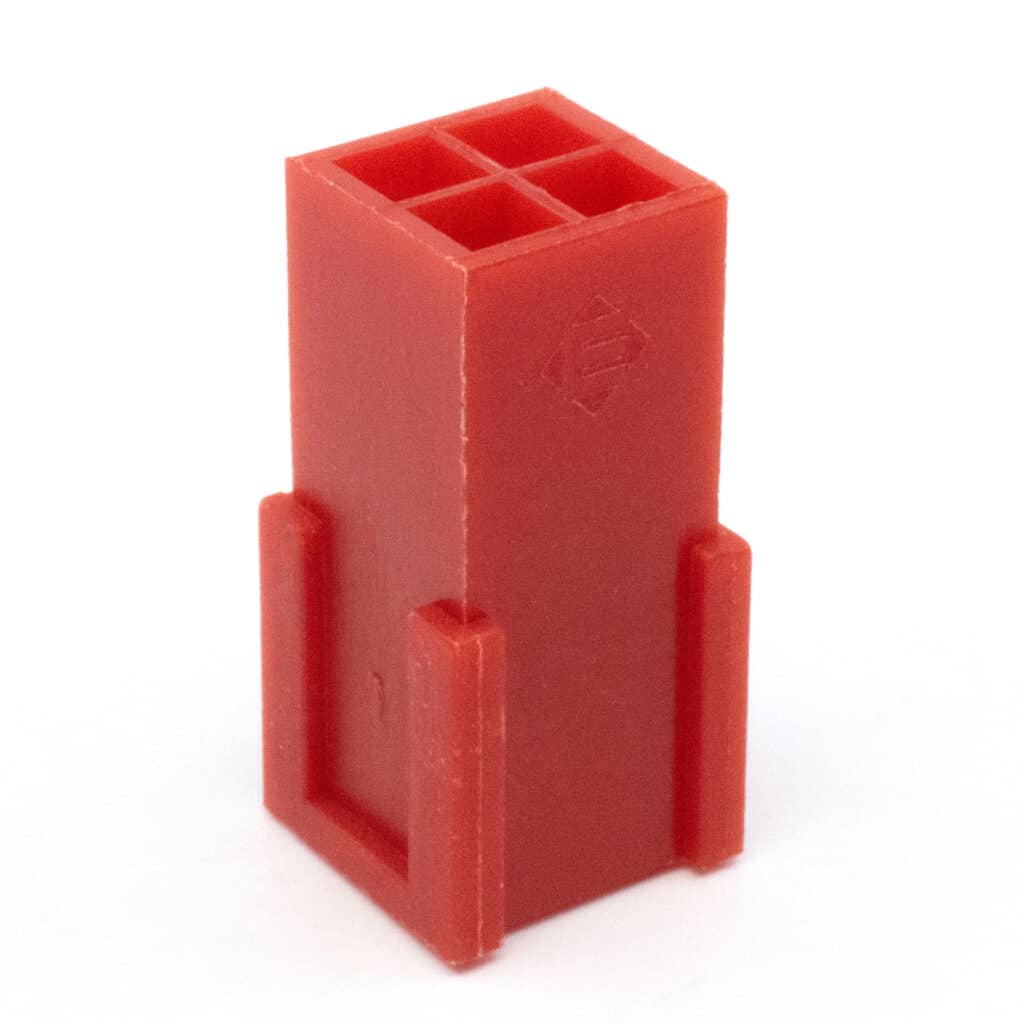

    Ecm302204r

    ECM3022 Series Free Hanging Plug Housing

    decoration Ecm302204r

    Industry Utilization:

    CERTIFICATIONS

    Rohs Logo Reach Logo

    CATEGORIES

    Series Configurator

    * If you need further customization let us know and we'll see how we can help!

    Product Number:

    Ecm302204r

    * Product image not available for this configuration.

    Displaying general product image that doesn't necessarily match configuration.

    Links

    Most Common Configurations

    ECM302202R
    ECM302204R
    ECM302206R
    ECM302210R

    Detail Specifications

    • Voltage Rating: 250VAC
    • Current Rating: 5A max
    • Housing: PA66, UL94V-0
    • Insulation Resistance: 100Mohm min
    • Withstanding: 100Mohm min
    • Operating Temperature: -25°C to +85°C
    • Poles: 2-10
    • Wire Range: 28-22AWG
