DR Series Rotary DIP Switch

DR Series Rotary DIP Switch

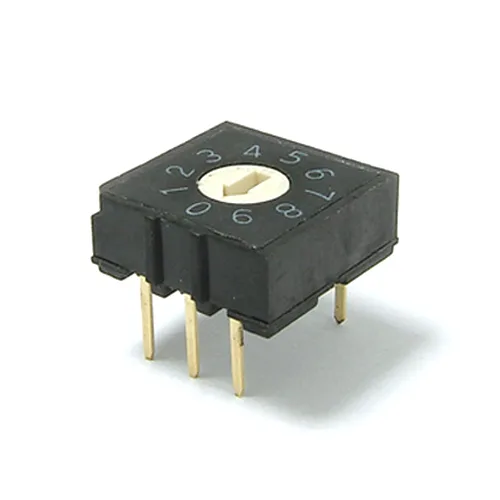

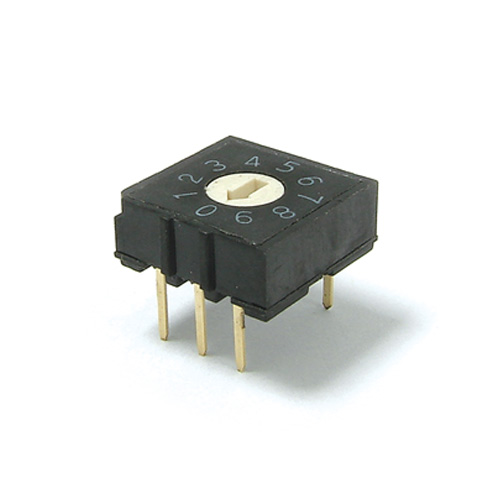

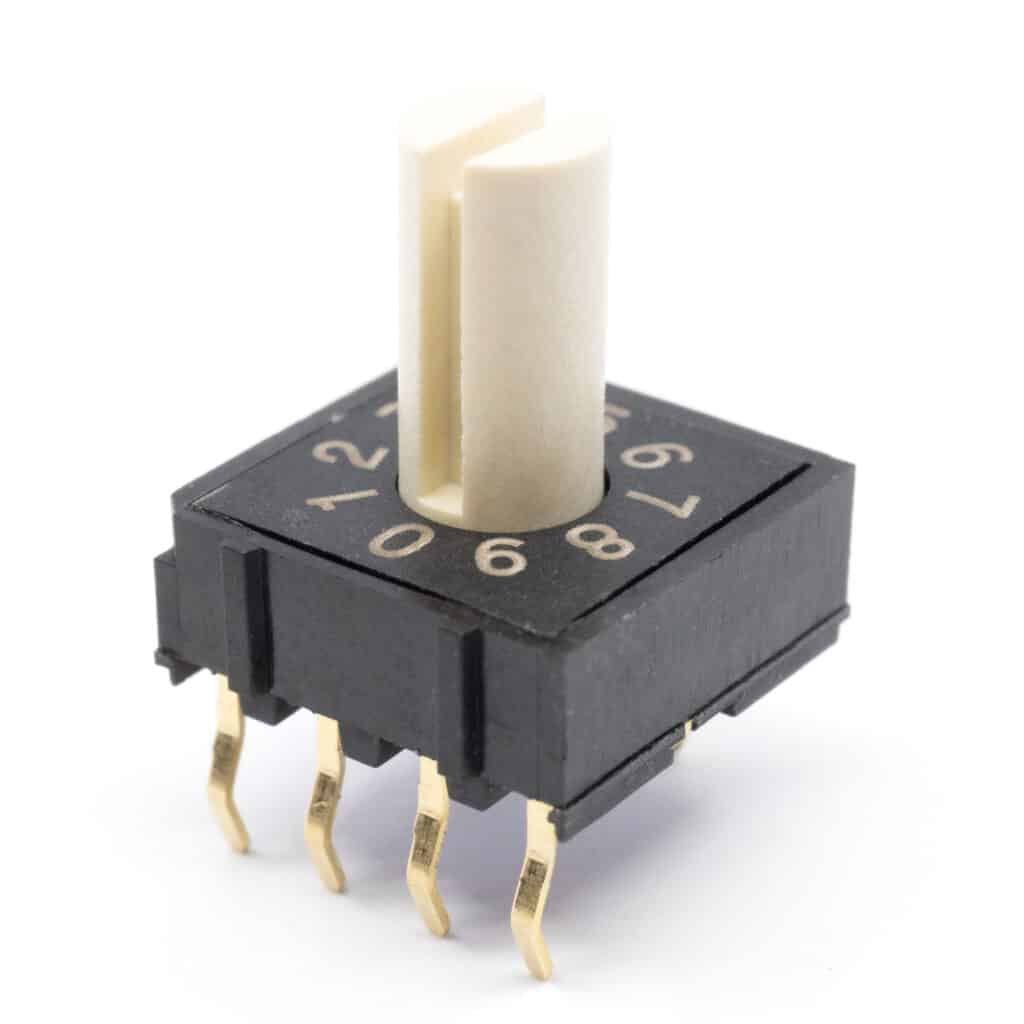

The DR Series rotary DIP switches feature through hole, snap-in through hole, right angle and surface mount termination options. They arrive in either tape and reel or tube packaging, and you can also choose from extended or flush actuators with 10 or 16 positions.

The DR Series rotary DIP switch measures 4.5mm by 9.8mm by 9.9mm, with 2x3, 3x3 and 4x1 PC board pin terminal layouts. This DIP switch operates in temperatures -25 to 80°C and can be stored at -40 to 85°C, making it good for harsh environments. This is also a durable DIP switch with a life expectancy of 15,000 steps.

Applications for the DR Series rotary DIP switches include:

  • Test equipment
  • Instrumentation
  • Controller applications

FEATURES

  • Life expectancy of 15,000 steps
  • 3x2, 3x3, and 4x1 PCB pin layouts
  • Through-hole, through-hole snap-in, right angle, and surface mount designs
  • Tube or tape and reel packaging

DR Series Rotary DIP Switch

decoration Dr Series 2

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Dr Series 2

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: Switch: 25mA, 24VDC; Carry: 100mA, 50VDC OPERATING TEMPERATURE: -25°C to 80°C STORAGE TEMPERATURE: -40°C to 85°C ELECTRICAL LIFE: 15,000 Cycles DIELECTRIC STRENGTH: 250VAC for 1 Minute INSULATION RESISTANCE: 100MΩ Min. at 250VDC CONTACT RESISTANCE: 100mΩ Max. CAPACITANCE: 5pF VIBRATION TEST: Mil-Std-202F Method 201A SHOCK TEST: Mil-Std-202F Method 213B OPERATION FORCE: 400gf•cm / MATERIALS / BASE: Nylon, UL94 V-0 COVER: Nylon, UL94 V-0 ACTUATOR: Liquid Crystal Polymer, UL94 V-0 CONTACTS: Gold Over Nickel Plated Copper TERMINALS: Gold Plated Brass
