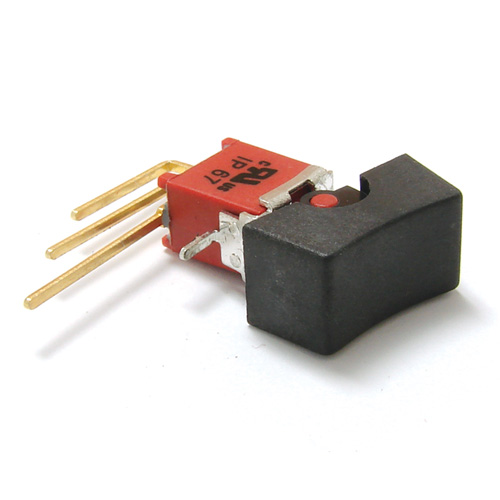

The 400A Series sealed, subminiature rocker switch is sealed at an IP67 rating and is totally protected against dust and the effects of temporary immersion in water up to 1 meter deep for 30 minutes. This subminiature rocker switch offers PCB pin and solder lug terminal options for panel mounting or PC board mounting.
The 400A Series rocker switches are panel mountable with a vertical solder lug, and PC mountable in five different ways. These rocker switches can be outfitted with silver or gold contacts that can handle both alternating or direct currents. The silver contacts offer the following electrical ratings: 3A, 120VAC [cURus]; 3A, 28VDC; and 1A, 250VAC [cURus]. The gold terminals are rated at 0.4va, 20v (AC or DC).
The 400A Series subminiature rockers operate in temperatures ranging from -30°C to 85°C and have an electrical life expectancy of 30,000 make-and-break cycles at full electrical load. Translation: these tiny rocker switches are tough.
Applications for this subminiature rocker switch include:
IP67 sealed for dust and moisture protection
Up to 3A, 120VAC or 28VDC contact rating; gold contacts available
PC board and panel mount designs
1 or 2 pole; momentary and maintained (latching) functions
ELECTRICAL RATING: Dependent on Contact Material
ELECTRICAL LIFE: 30,000 Make-and-Break Cycles at Full Load
CONTACT RESISTANCE:10mΩ Max. Initial at 2-4VDC; 100mA for Silver and Gold Plated Contacts
INSULATION RESISTANCE: 1,000MΩ Min.
DIELECTRIC STRENGTH: 1,000V RMS at Sea Level
OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
