TL6340 Series Right Angle, SMT Tactile Switch

TL6340 Series Right Angle, SMT Tactile Switch

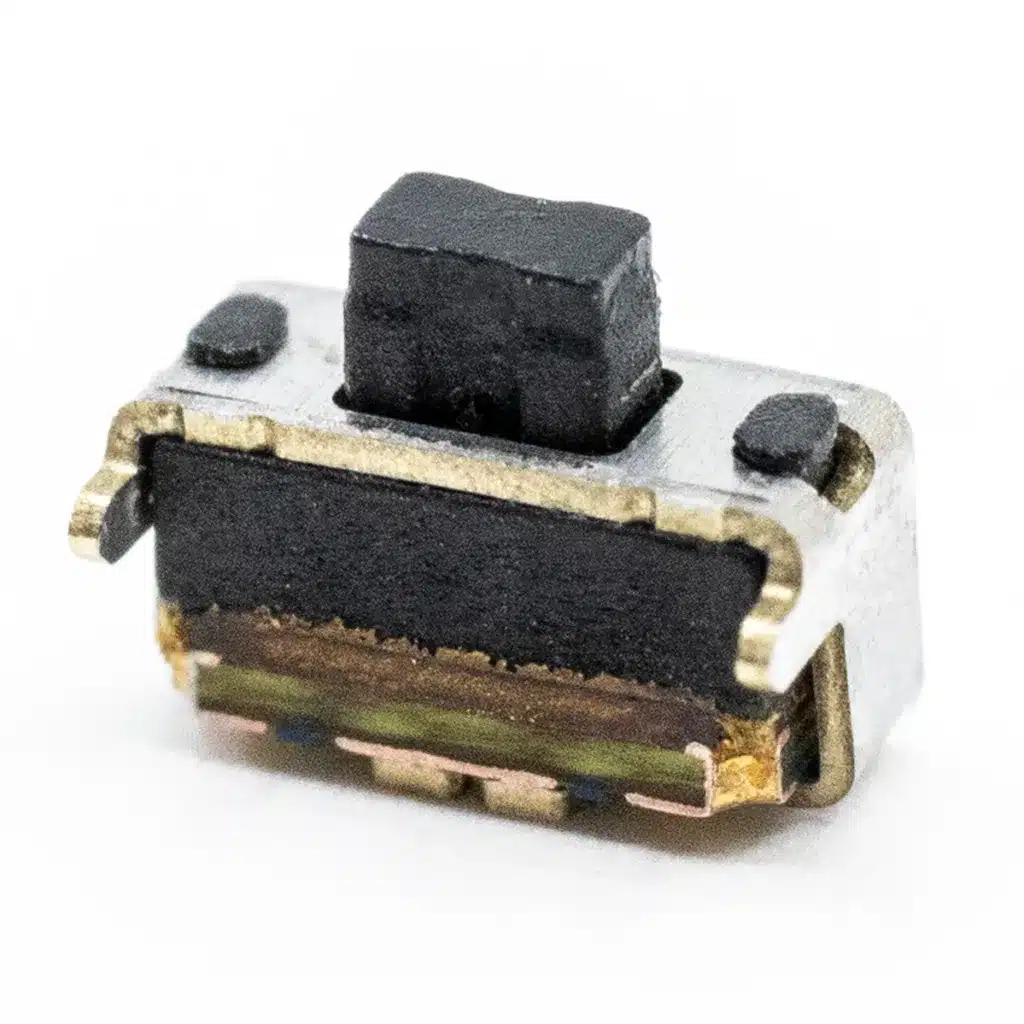

The TL6340 Series tactile switch is a right angle, surface mountable (SMT) switch with a 2.90mm x 3.85mm x 2.00mm footprint. The actuator on this tact switch is only 0.8mm off the PCB surface, making it a great choice for applications where space is limited. The TL6340 Series is an Single Pole, Single Throw (SPST) momentary tact switch with an actuation force of 160 grams and carries an IP67 rating for dust and moisture protection. It has a life expectancy of 200,000 cycles with a travel of 0.2mm. This tactile switch also has an industrial level operating and storage temperature range of -40°C to 85°C. Applications for this SMT tact switch include:

  • Wearable electronics
  • Computer peripherals
  • Consumer electronics
  • Instrumentation
  • Telecommunication
  • Handheld devices

FEATURES

  • IP67 rated dust and moisture protection
  • SPST contact arrangement
  • 2.90mm (W) x 3.85mm (L) x 2.00mm (H) dimensions
  • Up to 200,000 cycle life expectancy
  • Right angle, surface mount design

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

1

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL6340AF160Q

Detail Specifications

ELECTRICAL RATING: 12VDC @ 20mA CONTACT RESISTANCE100mOhms INSULATION RESISTANCE: 100MOHMS @ 100VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute LIFE EXPECTANCY: 200,000 Cycles OPERATING/STORAGE TEMPERATURE: -40°C to 85°C DUST/MOISTURE PROTECTION: IP67 TRAVEL: 0.2mm ACTUATION FORCE: 160gf ​CONTACT ARRANGEMENT: SPST
