Series Configurator
Series:

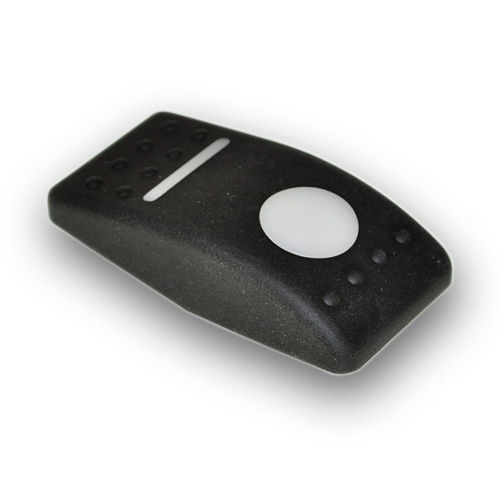

R7 → Actuator
Only
Actuator Type:
A1 → Hard PC A2 → Hard PC A3 → Hard PC B1 → Soft TPR B2 → Soft TPR B3 → Soft TPR B4 → Soft TPR C1 → Hard PC C2 → Hard PC C3 → Hard PC D1 → Hard PC D2 → Hard PC D3 → Hard PC E1 → Soft TPR E2 → Soft TPR E3 → Soft TPR F1 → Soft TPR F2 → Soft TPR F3 → Soft TPR
Actuator Color:
BLK → Black GRY → Grey
Lens Color:
X → None W → White G → Green
Marking:
-SXXX
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
Quantity
Add To Cart
This is not available for online purchase. Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
ELECTRICAL RATING: 20(8)A @ 125/250VAC, 50/60 Hz, µT55; 16A @ 6-30VDC, 50/60 Hz, µT55; 20(8)A @ 125/250VAC, 50/60 Hz, µT85/T55; 16A @ 6-30VDC, 50/60 Hz, µT85/T55
ELECTRICAL LIFE: 10,000 Cycles per UL61058
CONTACT RESISTANCE: 20mΩ Max. initial
INSULATION RESISTANCE: 100 MΩ Min. @ 500VDC
DIELECTRIC STRENGTH: 1,500VAC for 1 minute
OPERATING TEMPERATURE: 0°C to 55°C
STORAGE TEMPERATURE: -20°C to 85°C
AGENCY APPROVALS: cURus
CONTACT ARRANGEMENT: SP or DP up to 3 positions
DUST/MOISTURE PROTECTION: IP67 to front panel
PANEL THICKNESS: 1.5 - 4.5mm
