PP1 Series Push-pull Pushbutton Detector Switch

PP1 Series Push-pull Pushbutton Detector Switch

The PP1 Series switch is available as a push-pull pushbutton or momentary pushbutton. It acts as a door interlock switch or detector switch. This detector switch has high power ratings, up to 16A with 1HP, with UL approvals. This door interlock switch is rated IP40 and protects against solid objects over 1mm.

The PP1 Series push-pull pushbutton switches have a very high tolerance for activation and the ability to include push and pull activation for manual maintenance. These pushbutton switches are available with either a short or long body and fit a panel mount cutout sized 36.5mm x 13.5mm.

This door interlock pushbutton detector switch is used in a variety of applications, including:

  • Slot machines
  • Kiosks
  • Gaming equipment
  • Appliances
  • HVAC
  • Security devices

FEATURES

  • 16A, 125VAC, 1HP electrical rating
  • 13.3mm x 28.2mm panel cutout
  • SPDT, push-pull or momentary pushbuttons

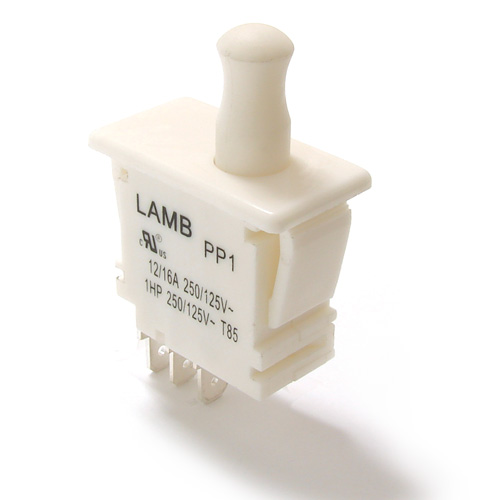

PP1 Series Push-pull Pushbutton Detector Switch

decoration Pp1 Series

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pp1 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

PP1-DT7-2B2
PP1-EB7-1A2

Detail Specifications

ELECTRICAL RATING: 16A @ 125VAC [cULus]; 12A @ 250VAC [cULus]; 1HP @ 125/250VAC [cULus] STORAGE TEMPERATURE: 0°C to 85°C ELECTRICAL LIFE: 6,000 Cycles [cULus] CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 10MΩ Min. OPERATING TEMPERATURE: 0°C to 85°C PANEL CUTOUT: 13.5mm x 36mm DUST PROTECTION: IP40 FUNCTION: SPDT, On-(On) or On1 -On2 -(On2 )
