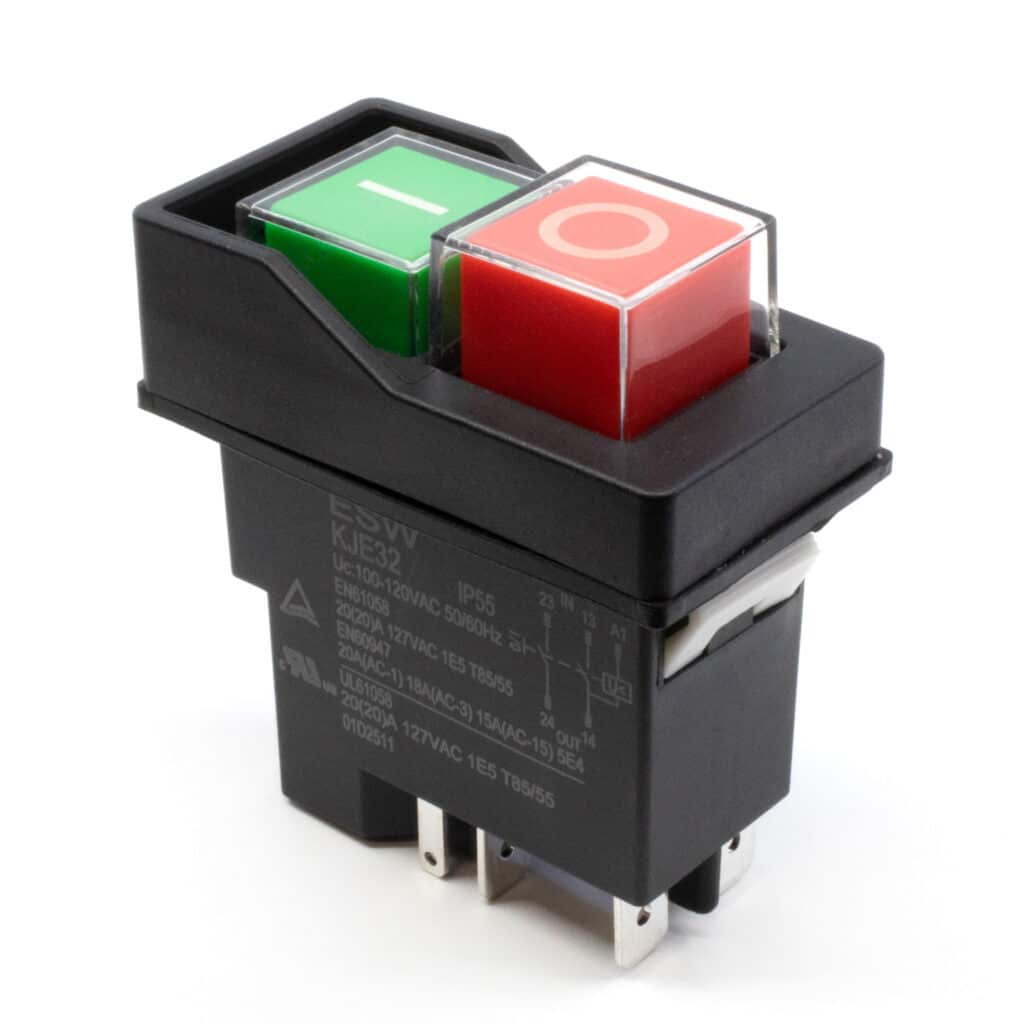

KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch
KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch
- Heavy duty industrial design
- Electromagnet provides automatic safety protection against power outages and restarts
- 46mm x 22mm x 2.5mm panel cutout
- Contact Ratings (TUV and UL listed)
- 20(20)A 250VAC 1E5 T85/55 TUV(EN61058)
- 20(20)A 127VAC 1E5 T85/55 TUV(EN61058)
- 20(20)A 127VAC 1E5 T85/55 UL (EN61058)
- 25.1A 60VDC 10E4 T85/55 UL(EN61058)
- PVC cap for dust and water protection - IP55 rating
- Six different function options (2NO, 2NO w/ remote trip, NO + NC w/ remote trip, NO + NC, 2NO + NC, 2NO + NC w/ remote trip)
- Black or yellow bezel options
- Four different actuator marking styles
KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- Contact Arrangement: 2NO, NO + NC, 2NO + NC
- Contact Rating:
- 20(20)A 250VAC 1E5 T85/55 TUV(EN61058)
- 20(20)A 127VAC 1E5 T85/55 TUV(EN61058)
- 20(20)A 127VAC 1E5 T85/55 UL(EN61058)
- 25.1A 60VDC 10E4 T85/55 UL(EN61058)
- Agency Approvals: TUV EN61058, UL EN61058
- Contact Resistance: < 50mOhms
- Insulation Resistance: Min 100MOhms
- Operating/Storage Temperature: T85/55 / -20°C to 85°C
- Dielectric Strength: 1500VAC
- Electrical Life: 10,000
- Travel: Green Button: 4.7 +/-.3mm; Red Button: 2.3 +/-.3mm
- Moisture Protection: IP55
- Actuation Force: Green Button: 25N+/-5N; Red Button: 10N +/-5N
