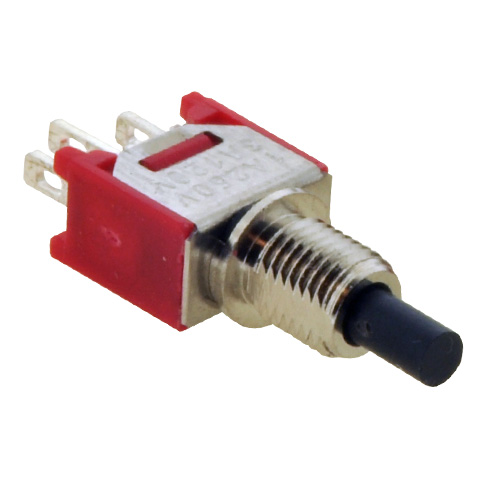

800C Series Alternating Action Miniature Pushbutton Switch
800C Series Alternating Action Miniature Pushbutton Switch
- Miniature in size
- Termination options: right angle PCB pin, solder lug or vertical PCB pin
- Panel mount or PCB mount switch
- Alternating action design, SPDT functions
- Electrical Rating
- Silver: 3A @ 120VAC or 28 VDC, 1A @ 250VAC
- Gold: 0.4VA @ 20V Max (AC or DC)
- Full Travel: 1.88mm; Electrical Travel: 1.34mm
- Operating Force: 350gf
- Operating Temperature: -30°C to 85°C
800C Series Alternating Action Miniature Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: Silver: 3A@120VAC or 28VDC; 1A@250VAC; Gold: 0.4VA @ 20V Max (AC or DC)
- ELECTRICAL LIFE: 6,000 Cycles
- CONTACT RESISTANCE: Silver: 50mΩ Max initial; Gold: 20mΩ Max initial
- INSULATION RESISTANCE: 1,000 MΩ Min. @1000VDC
- DIELECTRIC STRENGTH: 1000VAC for 1 minute
- OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
- TRAVEL: Electrical Make: 1.34mm; Full travel: 1.88mm
- CIRCUIT FUNCTION: SPDT
- ACTUATION FORCE: 350 gf
