ULV8 Series UL Certified, Illuminated Anti-Vandal Switch
ULV8 Series UL Certified, Illuminated Anti-Vandal Switch
- UL Certified
- IP67
- 25mm panel cutout
- 3A, 125/250VAC; UL, cUL
- SPDT or DPDT circuit; latching or momentary function

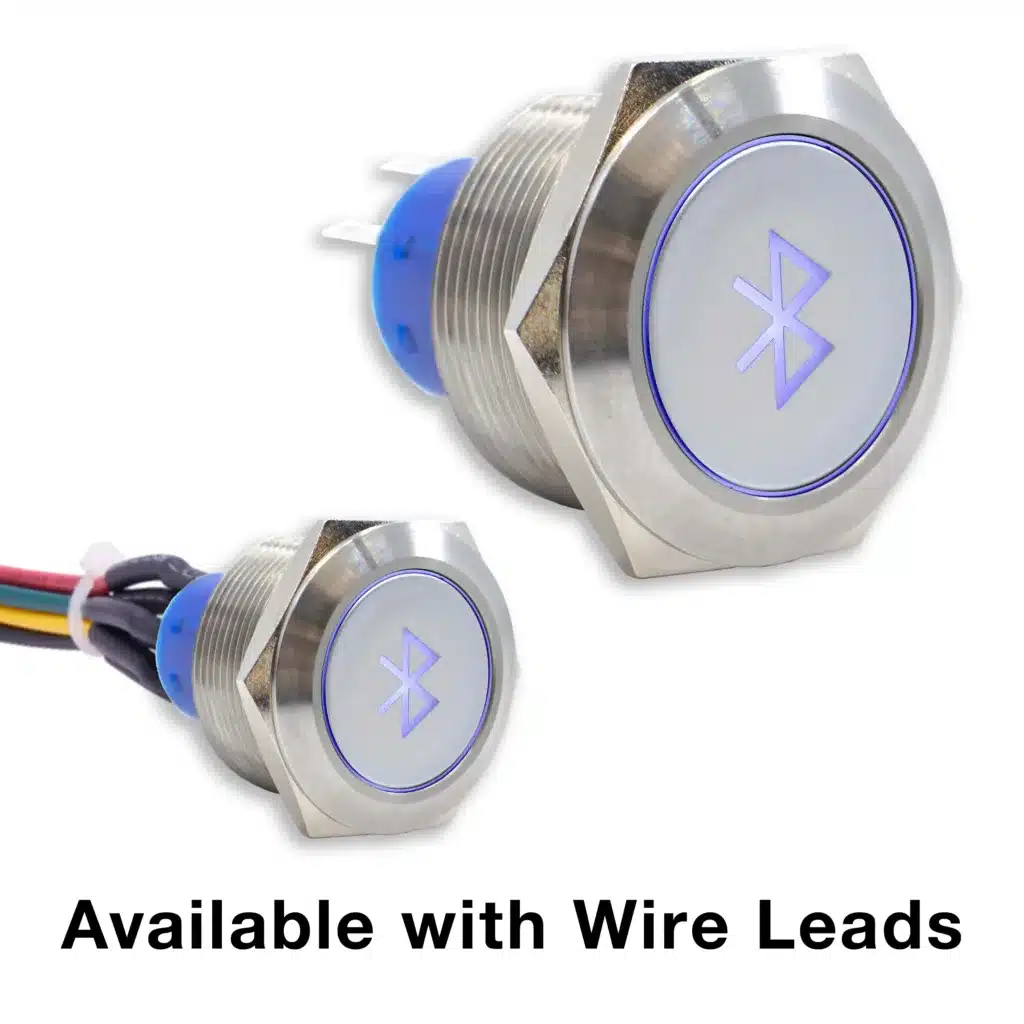

- Solder, wire leads, detachable socket with wire leads, or molded back with wire leads
- Flat actuator
- Stainless steel or black anodized finish options
- Illuminated ring, ring and power symbol, or custom graphic options
- Many LED illumination color options including bi-color
- Many illumination voltage options
- 43 different illuminated custom graphics options available
- 50,000 cycles electrical life
- Silver or gold contact material
- -20°C to 55°C operating temperature
ULV8 Series UL Certified, Illuminated Anti-Vandal Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 3A @ 125/250VAC
- MECHANICAL LIFE: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- ELECTRICAL LIFE: 50,000 Cycles
- CONTACT RESISTANCE: 50mΩ
- INSULATION RESISTANCE: 1000 MΩ @ 500VDC
- DIELECTRIC STRENGTH: 2,000VAC
- OPERATING/STORAGE TEMPERATURE: -20°C to 55°C
- TRAVEL: 3.2mm
- DUST/MOISTURE PROTECTION: IP67
- CONTACT ARRANGEMENT: SPDT or DPDT
- ACTUATION FORCE: Single Pole: 2.5N; Double Pole: 3.5N
- PANEL THICKNESS: 1-10mm
- HEX NUT TORQUE: 5-14Nm
- MECHANICAL IMPACT PROTECTION: IK08
- AGENCY APPROVALS: cURus
