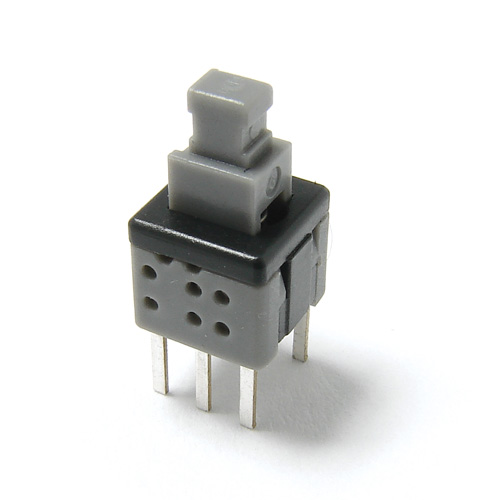

TL2203 Series Subminiature Pushbutton Switch
The TL2203 Series subminiature pushbutton switches are available as either (maintained) latching or momentary pushbuttons with a Double Pole, Double Throw (DPDT) circuit. The pushbutton travels 1.9mm when 180 grams of operating force is applied, making this a long travel switch. The TL2203 Series subminiature pushbutton switch can handle 100mA of 30VDC electricity and operates in temperatures ranging from -20 to 70°C. Its life expectancy is 10,000 cycles. Included in this series are the TL2201, TL2202, TL2230, TL2285, and TL4201 pushbutton switches. Applications for these subminiature pushbutton switches include:
- Telecommunications
- Networking
- Computers/servers
- Performance audio
- Instrumentation
- Low power on/off designs
- External hard drives and modems
FEATURES
- 100mA, 30VDC electrical rating
- PC board mounting design
- Long travel
- DPDT, maintained (latching) or momentary pushbuttons
