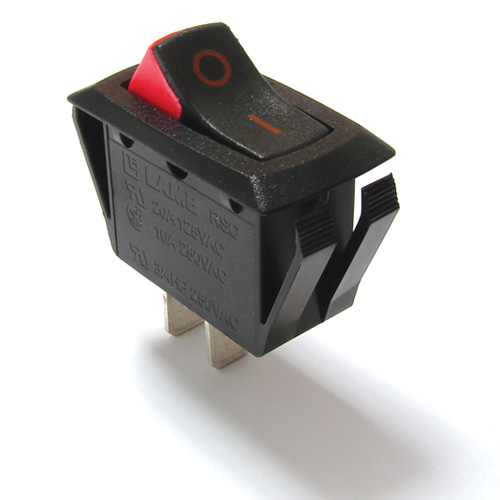

RSC Series High Current Rocker Switch with Bi-color Actuator

RSC Series High Current Rocker Switch with Bi-color Actuator

The RSC Series high current rocker switch carries electrical ratings of 20A, 125VAC, 1/4 HP T105 with [cURus] approval. This illuminated power rocker switch has a bi-color actuator available either curved or flat. These LED rocker switches also come with either full or signal light illumination. The RSC Series illuminated power rocker switch is available for four popular panel cutout sizes. These high current rocker switches feature 1-pole circuits and operate in temperatures ranging from -20°C to 105°C. Applications for this high current rocker switch include:

  • Commercial appliances
  • Industrial controls
  • Floor care appliances
  • Instrumentation
  • Medical/dental
  • Electrical housewares


  • 20A, 125VAC, 1/4HP electrical rating with cURus approval
  • Full or signal light illumination options
  • Four different panel cutouts ranging between 12.1mm and 13.9mm x 27.2mm and 28.6mm

RSC Series High Current Rocker Switch with Bi-color Actuator

decoration Rsc Wire



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Rsc Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Option D: 20A @ 125VAC [cULus]; 16A @ 250VAC [cULus, CSA]; 1/4HP @ 125/250VAC [CSA]; 3/4HP @ 125/250VAC [cULus]; Option C: 15A @ 125VAC [cULus] OPERATING TEMPERATURE: -20°C to 65°C [cULus, CSA]; -20°C to 105°C [cULus] ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 20mΩ Max. @ 1A 5VDC INSULATION RESISTANCE: 100MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 1,000VAC for 1 Minute
