RB1 Series Illuminated, Power Rocker Switch

RB1 Series Illuminated, Power Rocker Switch

The RB1 Series illuminated, power rocker switch has an electrical rating of 20A, 125VAC 1/4 HP T65 [cURus]. The actuator on this switch can be curved or flat and comes fully illuminated, dot illuminated, or signal light illuminated. The RB1 Series power rocker switch features the industry standard 11mm x 30mm panel cutout dimensions. This LED rocker switch has multiple terminal and actuator marking options, plus an optional cap for dust and water protection for an ingress protection rating of IP54. It is meant for 1-pole, momentary or maintained functions. Applications for this illuminated, power rocker switch include:

  • Commercial appliances
  • Industrial controls
  • Floor care appliances
  • Instrumentation
  • Medical/dental
  • Electrical housewares


  • 20A, 125VAC, 3/4HP electrical rating with [cURus] certification
  • Optional cap provides protection from dust and moisture at IP54 rating
  • Full, dot, or signal light illumination and actuator marking options



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

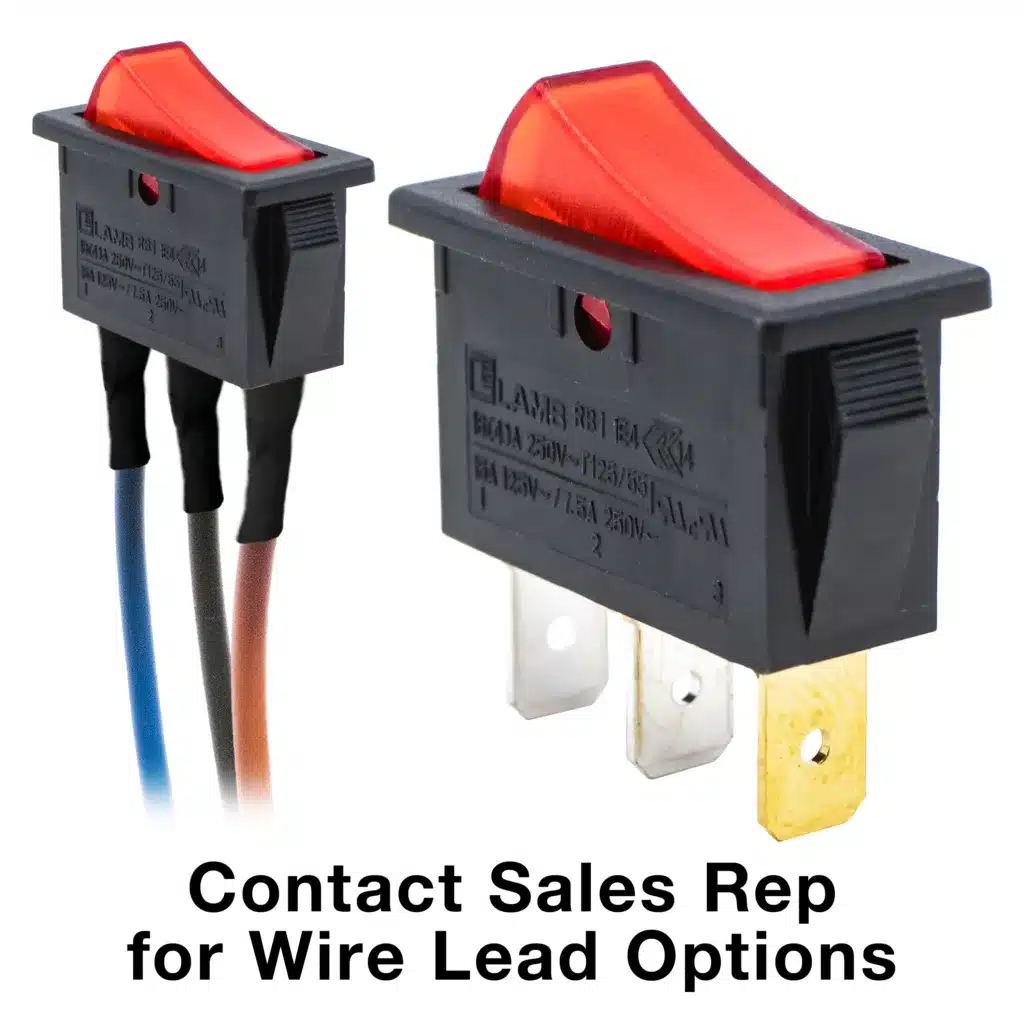

Rb1 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Option D (2 Pos. Functions): 20A @ 125VAC, T105 [cURus]; 16A @ 250VAC, T105 [cURus]; 3/4HP @ 125VAC, T105 [cURus]; 3/4HP @ 250VAC, T105 [cURus]; Option E (3 Pos. Funtions): 16A @ 125VAC, T65 [cURus]; 16A @ 250VAC, T65 [cURus] OPERATING/STORAGE TEMPERATURE: -20°C to 65°C ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 35mΩ Max. at 50VAC INSULATION RESISTANCE: 100MΩ Min. at 500VAC DIELECTRIC STRENGTH: 1,500VAC for 1 Minute DUST/MOISTURE PROTECTION: IP54 with Optional Silicone Cap
